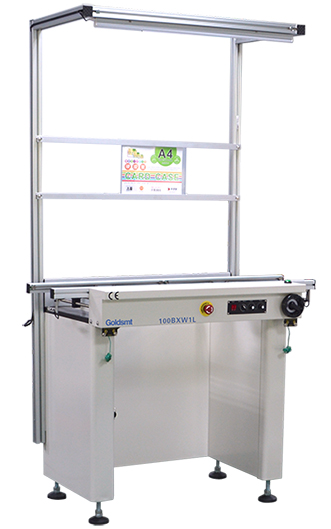

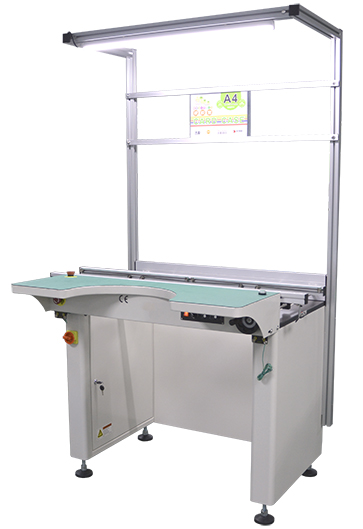

Work Station
Design Inspection Conveyor with Overhead Lighting
By Pass and Inspection Mode

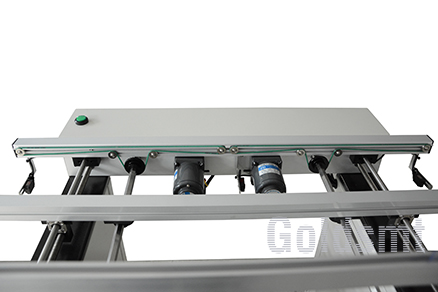

Stainless Steel Lead Screw Width Adjustment
Conveyor width adjustment by hand crank
Adjustable Speed Control
Controlled by PLC
Panasonic Sensor CX-422
4.8mm ESD Flat Belt
SMEMA compatible
CE compliance
Product Description
Application:
Workstation performs manual assembly work on the PCB without removing it from the PCB assembly line
Main Specifications:
|
Conveyor Height:
|
950 mm ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Optional Right to Left)
|
|
Fixed Rail:
|
Front (Optional rear rail fixed)
|
|
Component Clearance:
|
Bottom 30 mm (Or specify)
|
| Conveyor Speed: | 1--12 m/min (Or specify) |
|
PCB Edge Support:
|
3 mm (Or specify)
|
|
Max PCB Width:
|
M-350mm, X-460mm
|
| Machine Interface: | SMEMA |
|
Power Supply:
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
Order and Shipping Info:
|
Description
|
Work Station 1000mm,12000mm,15000mm
|
||
|
Model No
|
100BXW1L
|
120BXW1L
|
150BXW1L
|
|
Max PCB Size(LxW)
|
535x460mm
|
535x460mm
|
535x460mm
|
|
Machine Dimension(LxWxH)
|
1000x750x1800mm
|
1200x750x1800mm
|
1500x750x1800mm
|
|
Net Weight
|
76kgs
|
98kgs
|
134kgs
|
|
Shipping Dimension(LxWxH)
|
1150x900x1150mm
|
1350x900x1150mm
|
1650x900x1150mm
|
|
Gross Weight
|
119kgs
|
145kgs
|
190kgs
|
Options:
Line Central Auto Width Adjustment, Option Part Number: AW026-Inspection Conveyor
Change from ESD Flat Belt to Pin Chain Conveyor , Option Part Number: PC029-1000mm
PC030-1200，1500mm
Extra Segment, Option Part Number: ES019
