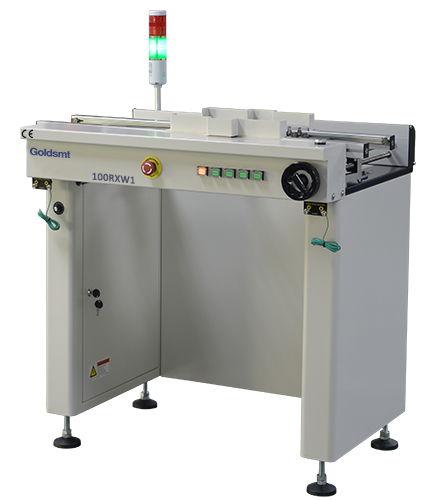

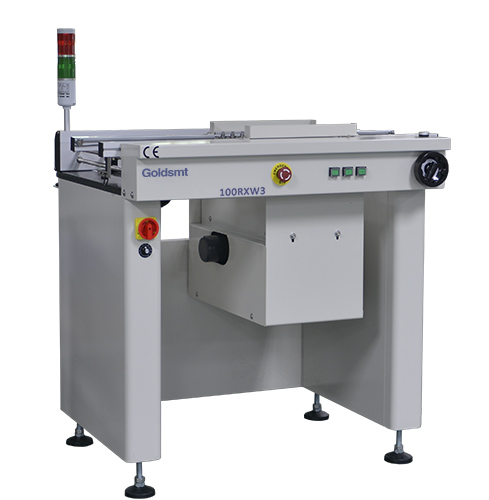

AOI/Reject Conveyors
All Metal Solid Design AOI Conveyor
Reject, Inspect and By Pass and Mode
Stainless Steel Lead Screw Width Adjustment
Conveyor width adjustment by hand crank
Adjustable Speed Control
Controlled by PLC
Panasonic Sensor CX-422
4.8mm ESD Flat Belt
SMEMA compatible
CE compliance
Product Description
Application:
AOI/Reject Conveyors automatically lift up rejected (NG) PCBs for visual inspection or removal as they come out of an inline AOI or SPI machine while good PCBs pass through to the next process
Main Specifications:
|
Conveyor Height:
|
950 mm ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Optional Right to Left)
|
|
Fixed Rail:
|
Front (Optional rear rail fixed)
|
|
Component Clearance:
|
Up 20 mm Bottom 20 mm (Or specify)
|
| Conveyor Speed: | 1--12 m/min (Or specify) |
|
PCB Edge Support:
|
3 mm (Or specify)
|
|
Max PCB Width:
|
S-280mm, M-350mm, L-400mm, X-460mm
|
| Machine Interface: | SMEMA |
|
Power Supply:
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
Order and Shipping Info:
|
Description
|
AOI/Reject Conveyors
|
|||
|
Model No
|
100RSW1
|
100RMW1
|
100RLW1
|
100RXW1
|
|
Max PCB Size(LxW)
|
350x280mm
|
460x350mm
|
535x400mm
|
535x460mm
|
|
Machine Dimension(LxWxH)
|
1000x560x950mm
|
1000x650x950mm
|
1000x700x950mm
|
1000x750x900mm
|
|
Net Weight
|
72kgs
|
80 kgs
|
85kgs
|
90kgs
|
|
Shipping Dimension(LxWxH)
|
1150x710x1150mm
|
1150x800x1150mm
|
1150x850x1150mm
|
1150x900x1150mm
|
|
Gross Weight
|
111kgs
|
121kgs
|
128kgs
|
134kgs
|
Options:
Store 3 pcs NG boards, Option Part Number: TN031
Line Central Auto Width Adjustment, Option Part Number: AW032-AOI Conveyor
Change from ESD Flat Belt to Pin Chain Conveyor , Option Part Number: PC029-1000mm
PC030-1200，1500mm
Customized Conveyor Length, Option Part Number: CC033-1200mm
Stand for 2 Monitors, Lamps, Magnifier holder & Keyboard Stand, Length, Option Part Number: ST034
