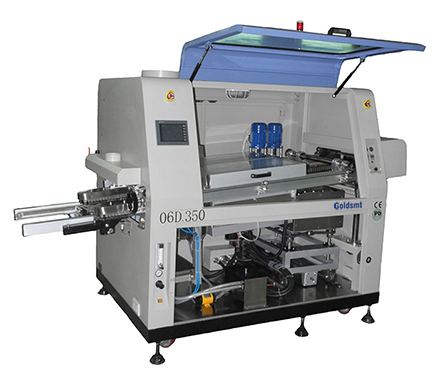

0.6 Meter Preheating Wave Soldering
Small solder pot capacity of 200 kilos
Dual Wave
Spray fluxer
Forced hot air convection 600mm 1 section preheating
Self-cleaning titanium finger conveyor
Titanium solder pot
Energy saving mode, save power and reduce solder dross
Touch panel control, save up to 100 programs
CE compliance
Product Description
Application:

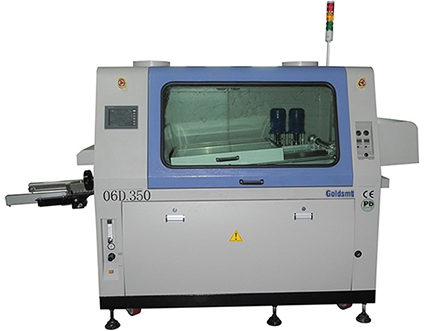

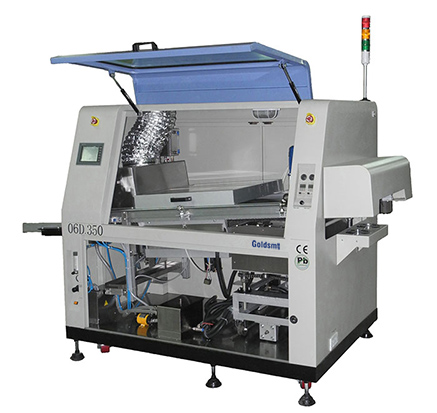

Wave solder system with spray fluxer, available with dual or single wave,0.6 Meter long preheating with a total machine length of 2550mm. Color LCD touch panel control. Ultra compact for space limited application. Titanium-alloy solder pot, capacity of approximately 200 kilos lead free solder.
Wave solder system with spray fluxer, available with dual or single wave,0.6 Meter long preheating with a total machine length of 2550mm. Color LCD touch panel control. Ultra compact for space limited application. Titanium-alloy solder pot, capacity of approximately 200 kilos lead free solder.
Features:

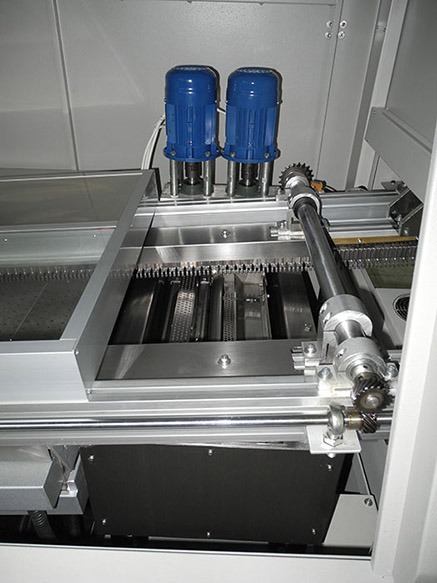

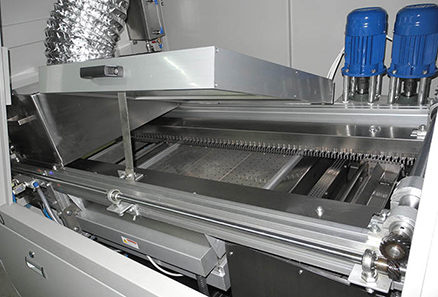

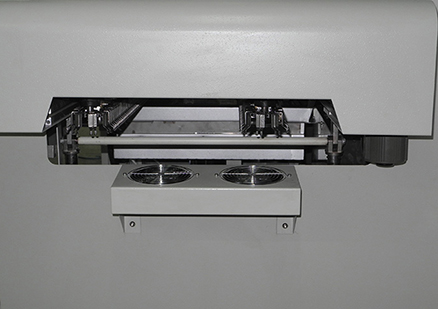

Variable-speed titanium finger conveyor for PCBs up to 350mm wide
Smooth, precise width adjustment via hand wheel
Dual-wave system with two variable-frequency controlled motors and independent adjustment of wavecrest height
Energy-saving mode with automatic board detection and timer to turn off pump motors during periods of inactivity—saves power and reduces dross volume

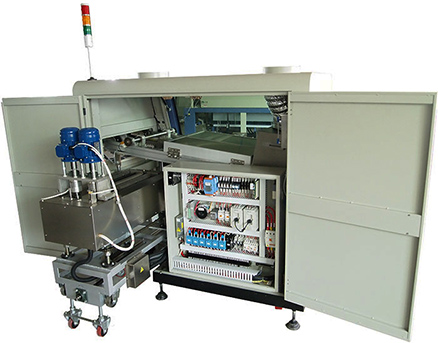

Easy, precise screw and hand-crank adjustment of solder pot up/down and in/out motion, while motor-drive and push-button control of solder pot is an option
Storage of up to 100 different production parameter files

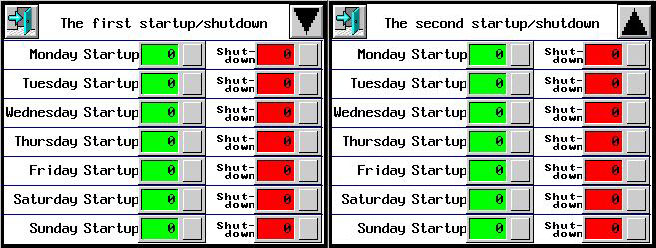

Fully automatic startup and shutdown according to operator-specified dates and times
Main Specifications:
|
Power Supply: 3 φ 380 V,50 HZ or 3 ph 220V
|
Air Pressure: 5~6Kg/cm² (4~6 bar)
|
|
Total Power: 18 KW
|
Normal Working Power: 3-5 KW
|
|
Conveyor Speed: 0.5～2.2m/min
|
Rail Adjust Angle: 4°～7°
|
|
Preheating Length: 600mm
|
Preheating Section: 1 section independent control
|
|
Solder Pot Temp: Ambient～300°C
|
Soldering Foot Length: Max 10mm
|
|
Spray Gun Movement: Step motor
|
Flux Atomization Spray Gun: Auto timing cleanning
|
|

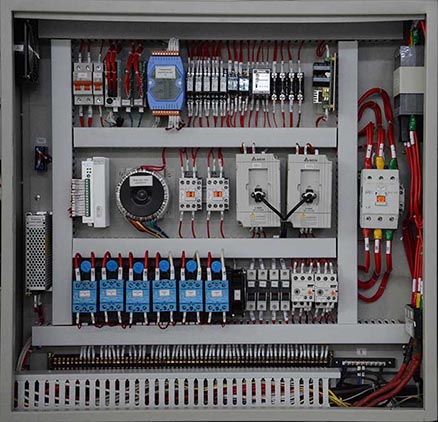

Control Mode: Touchscreen + PLC+SSR
|
Exhaust Fan: 400W
|
|
Model No.
|
06D350
|
|
Pin Conveyor Adjust Range
|
50～350mm(W)
|
|
Solder Wave Wdith
|
360mm
|
|
Solder Capacity
|
220 kgs
|
|
Preheating Length
|
0.6 Meter
|
|
Dimension
|
2550(L)x1150(W)x1650(H)mm
|
|
Crate Dimension
|
2820(L)x1500(W)x1880(H)mm
|
|
Net Weight
|
800 kgs
|
|
Gross Weight
|
920 kgs
|
Options Available:
Solder pot auto in-out, up-down, option item number: AI007
Top preheating, option item number: TP008
Selective spray fluxer, option item number: SF009
Second Titanium solder pot set, option item number: ST010
Second Stainless steel solder pot set, option item number: SS011
Second spray fluxer, option item number: SF012
