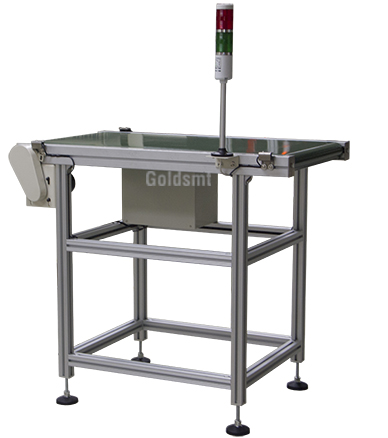

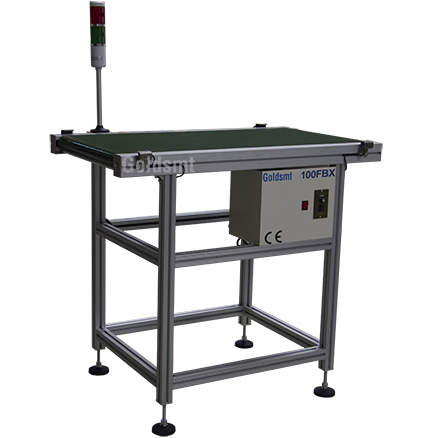

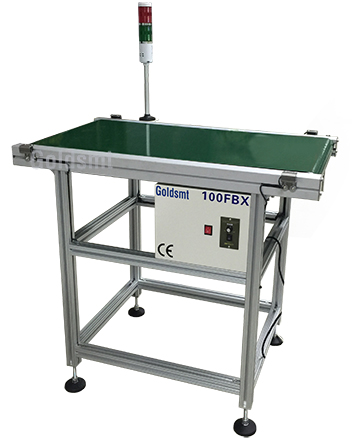

Flat Belt Conveyor
Conductive belt
Robust aluminum design for stability
Available in 300,400, 500 belt width or specify
Variable speed control
CE compliance
Product Description
Application:
The Flat Belt Conveyor is used for transferring of PCBs/ pallets in the production line
Main Specifications:
The Flat Belt Conveyor is used for transferring of PCBs/ pallets in the production line
Main Specifications:
|
Conveyor Height:
|
950 mm ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Right to left, please specify)
|
|
Conveyor Speed
|
0 - 10 m/min
|
|
Machine Length:
|
1000, 1500, and 3000 mm or specify
|
|
Power Supply:
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
Order and Shipping Info:
|
Description
|
Flat Belt 1000mm, 1500mm, 3000mm
|
||
|
Model No
|
100FBL
|

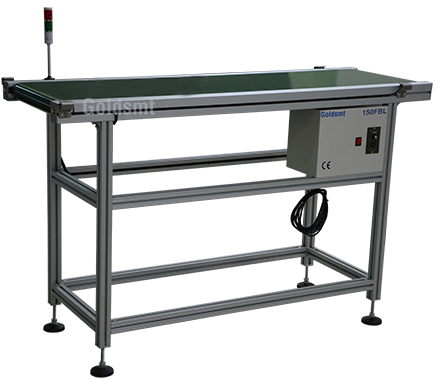

150FBL
|
300FBL
|
|
Max PCB Size(LxW)
|
1000x400mm
|
1500x400mm
|
3000x400mm
|
|
Machine Dimension(LxWxH)
|
1000x545x950mm
|
1500x545x950mm
|
3000x545x950mm
|
|
Net Weight
|
52kgs
|
65kgs
|
115 kgs
|
|
Shipping Dimension(LxWxH)
|
1150x695x1150mm
|
1650x695x1150mm
|
3150x695x1150mm
|
|
Gross Weight
|
75kgs
|
125kgs
|
190kgs
|

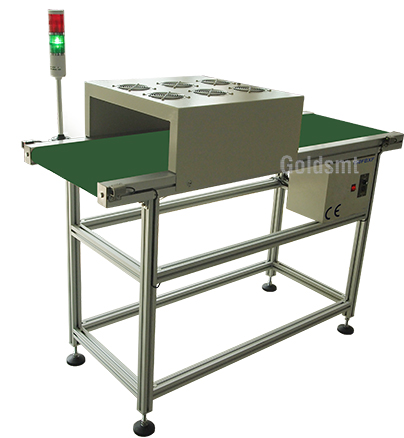

Cooling fan
2-color light tower and audible alarm
High temp belt
Other options available on request
