Ultra Low ≤5%RH Dry Cabinets A5

A5: Ultra Low ≤5%RH

Power: AC220V/110V, 50/60 HZ, 1 phase

Power Consumption: Ave. 105Wh; Max: 585W

Grounding Wire: 1MΩ (940mm long)

ESD Paint: 10³~10⁹Ω (surface resistance)

Structure: 1mm thick carbon steel with antistatic paint

Warranty: 2 years parts

Product Description

Application:

IC package: Low-humidity storage of IC packages (MSD) which have been removed from moisture barrier bags.
Low-humidity storage of MSDs before and leftover after implementation.
Low-humidity storage of MSDs that have been removed from mounter.
Low-humidity storage of MSDs when writing ROMs.
PCB: Dry storage of semi-mounted PCBs. Effective low-humidity storage of PCBs waiting second-side reflow.
Drying and storing multilayer PC boards before and after the mounting process.
Dry storage of pattern film and prepreg used in the manufacturing of PCBs.

Features:

When IC packages are stored in a dry box at 5%RH or lower, the floor life is indefinite!

1. Plug and play—no installation required

2. German brand Testo digital read-out displays temperature and humidity level

3. Desiccant automatically regenerates, desiccant level to be continuously maintained

4. Shelves capacity 45 kilos each

5. 2 anti-static wheels with brakes, 2 standard wheels

6. Anti-static paint and glass

7. Compression handles and airtight magnetic sealers

8. Recommended for MSD4, 5, 5a ultra low humidity storage.

Order and Shipping Info:

Model No	Machine Dimension(L×W×H)	Net Weight	Shipping Dimension(L×W×H)	Gross Weight

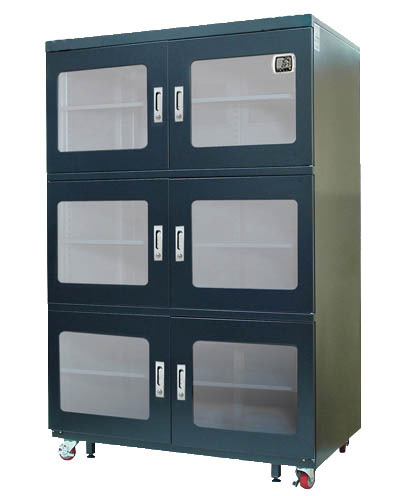

A5-1490	1200×672×1820mm	205 kgs	1380×852×2015mm	227 kgs

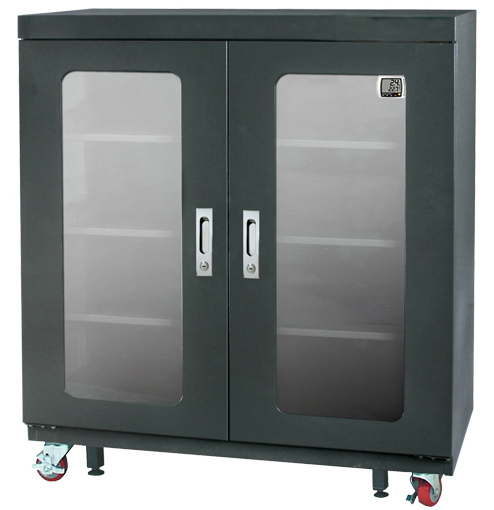

A5-315	905×452×1045mm	96 kgs	1085×632×1240mm	108 kgs

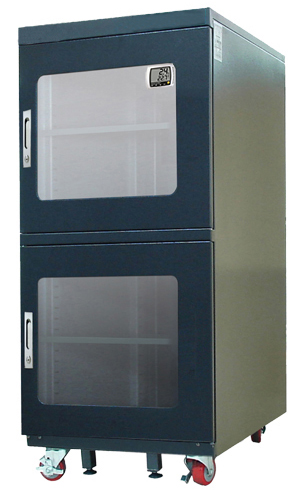

A5-490	600×672×1274mm	102 kgs	780×852×1470mm	118 kgs

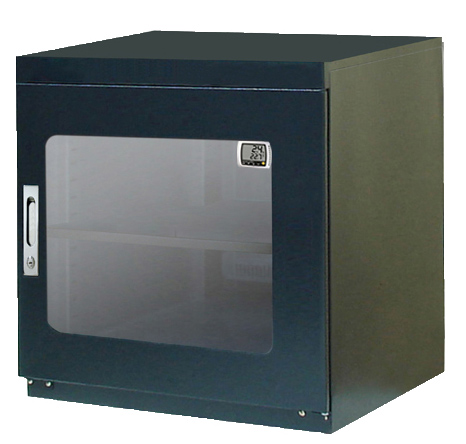

A5-290	600×672×642mm	65 kgs	780× 852×922mm	77 kgs

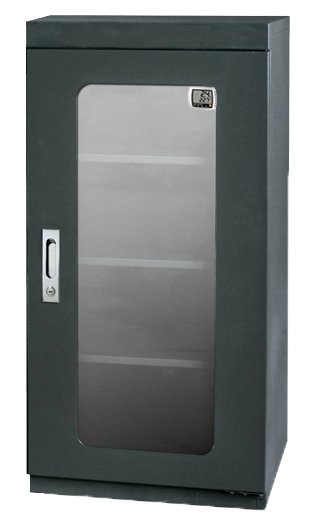

A5-157	450×452×1045mm	58 kgs	630×632×1240mm	68 kgs

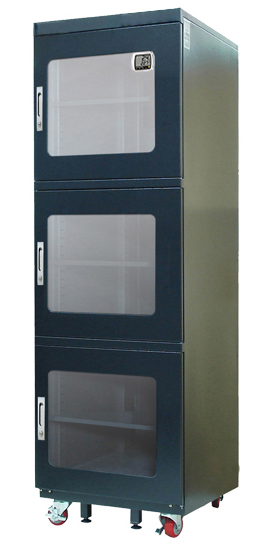

A5-790	600×672×1820mm	140 kgs	780×852×2015mm	152 kgs
