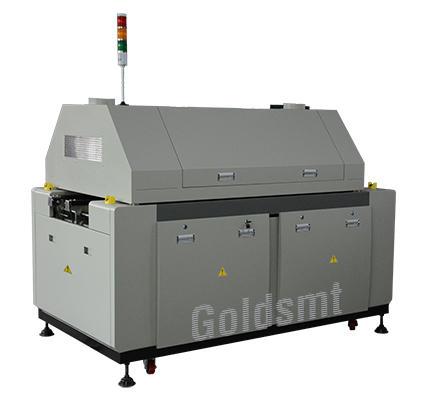

4-Zone Prototype Reflow Oven
Available with touch screen control, mesh belt only
Available with computer control, pin conveyor and mesh

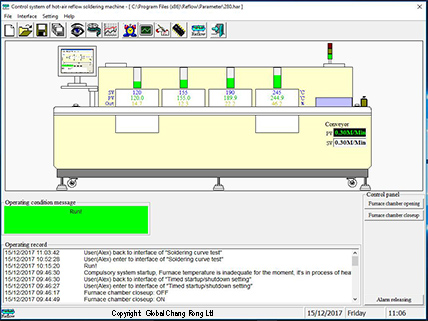

Powerful software for parameter settings
4 Independently Controlled Topside Convection Zones
4 Independently Controlled Topside Convection Zones
2 Lower Convection Zones Controlled by top
1 Cooling zone
1320 mm long heating tunnel

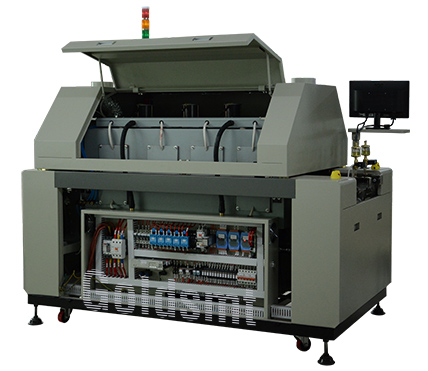

Automatic hood lift mechanism

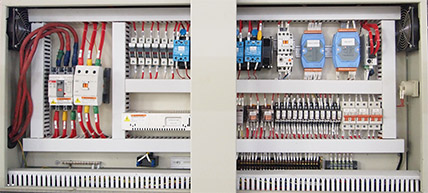

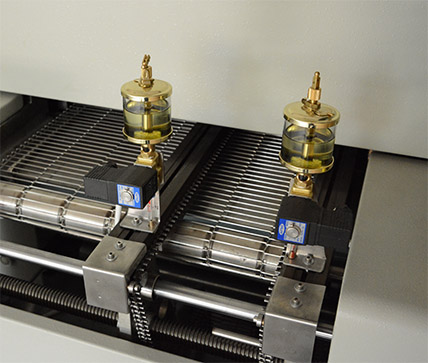

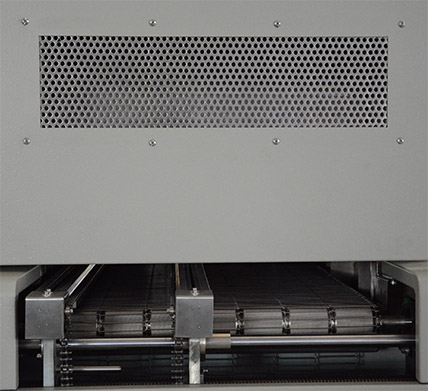

Automatic lubrication of the chain
3 thermocouple inputs
UPS battery backup
Automatic hood lift mechanism
Automatic lubrication of the chain
3 thermocouple inputs
UPS battery backup
CE compliance
Product Description
Application:

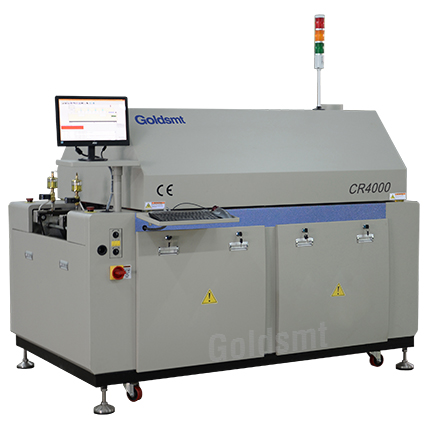

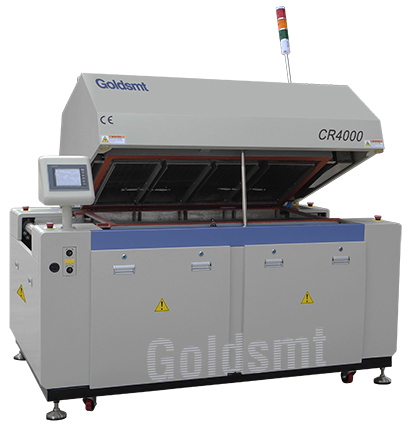

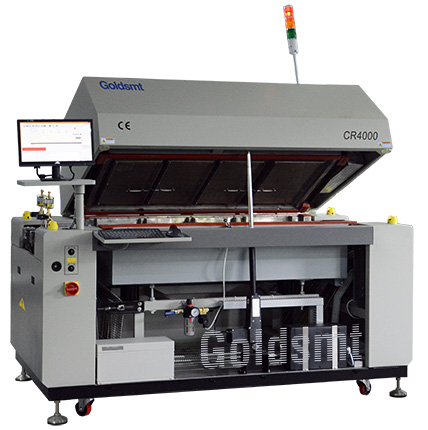

Force hot air reflow oven with four top and two bottom heating zones, CR4000T (CR4000C ) is ideal and economic solution for low to medium volume production. With a maximum temperature of 300°C, CR4000T (4000C ) is compatible with most of lead and lead free solder paste profiles
Main Specifications:
|
Power Supply:
|
3φ, 380V, 36A or 3φ, 220V,62A
|
|
Heating Mode:
|
Hot air forced convection
|
|
Operation System
|
Win 10
|
|
Temp Control Mode:
|
PID+ SSR
|
|
Temp Range:
|
Ambient～300°C
|
|
Ramp Up Time:
|
≤25min
|
|
Precision of Temp Control:
|
±1°C
|
|
Delta T:
|
±2°C
|
|
Height of Conveyor:
|
900±20 mm
|
|
Conveying Direction:
|
L-R (or R-L)
|
|
Conveyor Speed:
|
0.4～1.8 m/min
|
|
Pin Conveyor Width:
|
50~400 mm (C model)
|
|
PCB Width on mesh :
|
50~500 mm
|
|
Model No.
|
CR4000T
|
CR4000C
|
|
Pin Conveyor Width Adjust
|
No pin conveyor
|
50-400mm
|
|
Component Max Height
|
upper 50mm
|
upper 30mm, lower 25mm
|
| Cooling Zone Qty | 1 | 1 |
|
Power Consumption
|
4.0-4.5 KW
|
4.0-4.5 KW
|
|
Total Power
|
19KW
|
19KW
|
|
Number of Exhaust Vents
|
2
|
2
|
|
Exhaust Opening Size
|
6" x 2
|
6" x 2
|
|
Total Exhaust Venting
|
200 CFM
|
200 CFM
|
|
Net Weight
|
850 kgs
|
900 kgs
|
|
Machine Dimension
|
2000(L)x1100(W)x1400(H)mm
|
2000(L)x1100(W)x1400(H)mm
|
