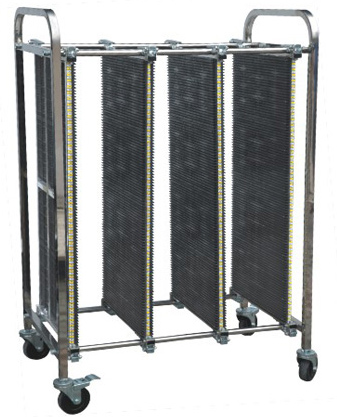

ESD PCB Trolley
Stainless steel, conductive plastic panel
ESD castor with brake
Compartment width are easy adjustable by buckle
Quantity (capacity) of panels are optional

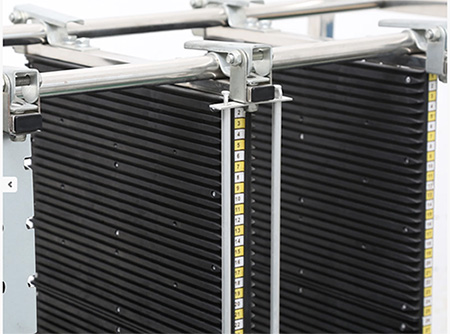

Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
Surface resistance: 104~106 Ω
Length could be customer made
Product Description
Application:
ESD PCB Trolley is designed for PCBs manufacture, assembly, storage and transfer.
Technical Specifications:
|
Model No.
|
TRO-460
|
|
Dimensions (L×W×H)
|
950x550x1300 mm
|
|
Max PCB Length
|
460 mm
|
|
Min PCB Width
|
250 mm
|
|
Capacity
|
Max. 300 PCS
|
|
Surface resistance
|
104~106 Ω
|
Options:
Other Options Available on Request
