6-Zone SMT Reflow Oven

Upper and lower independent temp control

450mm pin conveyor over 570mm mesh belt

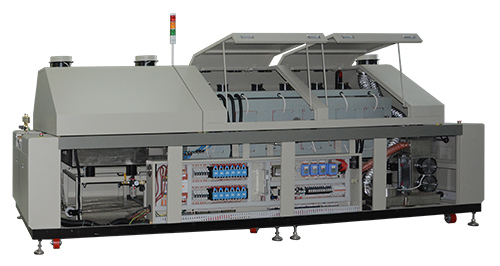

Automatic hood lift mechanism

Built in high efficiency flux reclaming device for clean oven tunnel and easy maintenance

Compact heating zone length
Powerful software for parameter settings

Full screen profile display,

3 thermocouple

Automatic lubrication of the chain

Automatic hood lift mechanism

UPS battery backup

CE compliance

Product Description

Application:

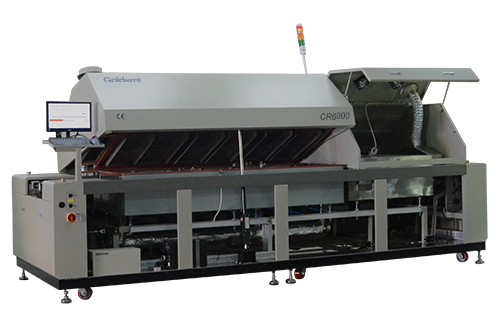

6-Zone SMT Reflow Oven (CR6000) is a force hot air reflow soldering with a combination of 6 independently controlled full convection heating zones (Upper 6, Lower 6) and 2 cooling zones; With a maximum temperature of 300℃, it is compatible with most of lead and lead free solder paste profiles.

Feature:

• Lead free process guaranteed, Industrial computer+PLC+SSR control

• PID temperature control to ensure zone temperature stability to ±1℃

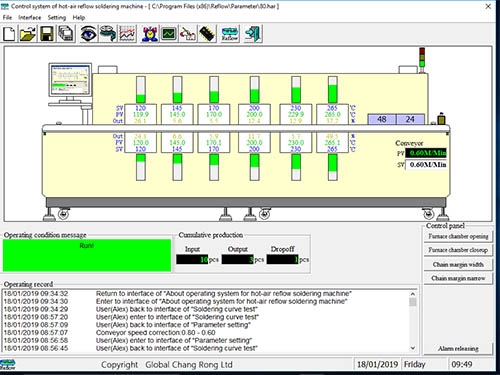

• Windows 10 system, LCD display, has 8 programs include on/off, speed control, temperature control, profile setting, audible and light alarm, delayed turn off, etc.

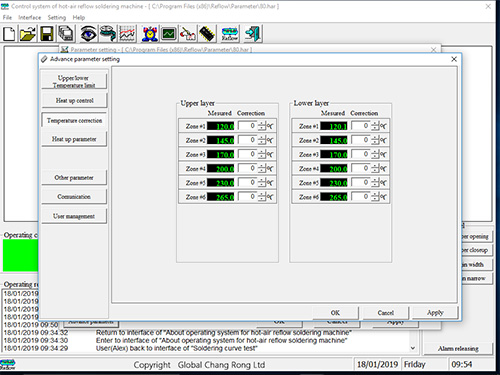

• Could set, save and load the oven temperature and conveyor speed parameters from the software.

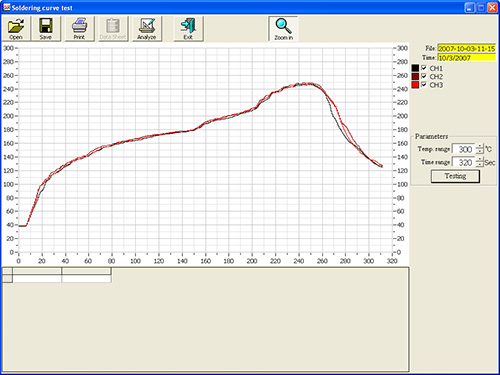

• Has PCB temperature profile testing function, and the profile could be printed out.

• Chain conveyor and mesh belt, suitable for high volume production and PCB of different specifications at the same time.

• Width adjustment is manual or with motor. The lower part of the chain uses mechanical device to lead the direction. Convenient for width adjustment and make sure stable PCB conveying after width adjustment.

• Use 3 points simultaneous width adjustment for the rail. No distortion.

• Use quality stainless steel for the heating tunnel. Quality heat insulation seal.

• Air outlet of the heating tunnel is located at the front and rear. Effectively prevent temperature interference of each zone.

• All machine is closed hot air cycling design in order to have maximum energy-saving.

• Weekly timer on/off.

• UPS battery backup and auto delayed off to make sure PCB could be sent out safely at power outage.

• Signal light tower to indicate system status.

• Malfunction audible and light alarm, operation status to display on the LCD. Operation log could be recorded.

• Could equip with nitrogen ready, and add nitrogen option at a later time.

Technical Specifications:

Model No.	CR6000
Lead Free Compatible	Yes
CE Compliance	Yes
Operation System	Win 10
Power Supply:	AC380V, 3 Phase,87A/ AC 220, 3 Phase, 151A
Conveyor & PC Power Supply	Uninterruptible Power Supply for Conveyor & PC
Heating Mode:	Hot air forced convection
Heating Zone Qty:	6 (Upper and Lower)
Heating Tunnel Length:	2050 mm
Power Consumption:	7.5~10.5 kw
Total Power:	48 kw
Ramp Up Time:	≤25 min
Precision of Temp Control:	±1°C
Delta T:	±2°C
Height of Conveyor:	910±30 mm
Conveying Direction:	L-R (or R-L)
Conveyor Speed:	0.4~1.8 m/min
Mesh Belt Width:	570 mm
Process Clearance	Above pins 30mm, below pins 25mm
Pin Conveyor Width:	50 mm-450 mm
Number of Exhaust Vents:	3
Exhaust Opening Size:	8" diameter
Exhaust Venting Volume:	390 CFM per port
Hood Opening Mechanism	Automatic Raise and Lower
Net Weight:	1700kgs
Gross Weight:	2150kgs
Machine Dimension (L× W× H):	4150×1510×1550 mm
Shipping Dimension (L× W× H):	4610×1800×1980 mm
