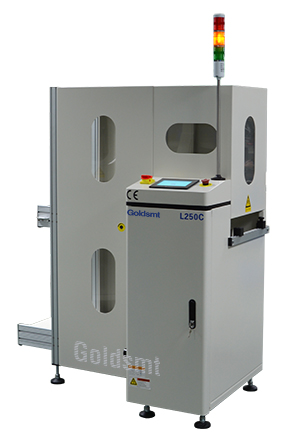

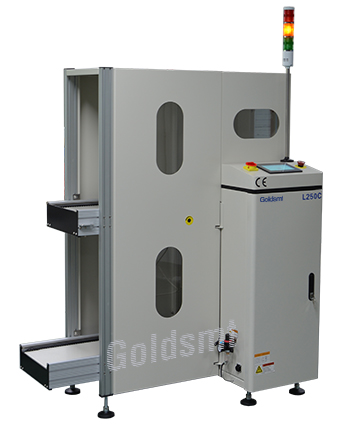

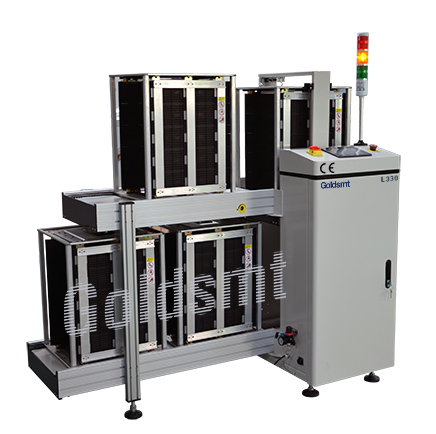

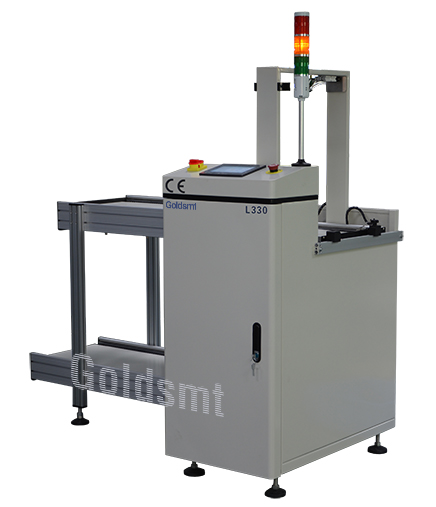

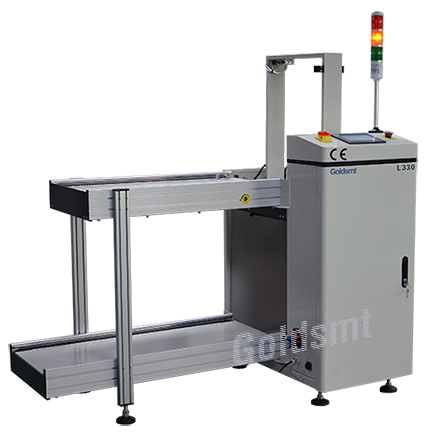

Multi Magazine Line Loader
Product Description
|
Description |
Multi Magazine Line Loader 250mm,330mm,390mm,460mm |
|||
|
Model No |
L250 |
L330 |
L390 |
L460 |
|
Max PCB Size (LxW) |
350x250mm |
460x330mm |
535x390mm |
535x460mm |
|
Magazine Size (LxWxH) |
355x320x563mm |
460x400x563mm |
535x460x570mm |
535x530x570mm |
|
Fixed Rail |
Front |
|||
|
Flow Direction |
Left to right (Option right to left) |
|||
|
Conveyor Height |
920 ± 30 mm (For SMT application) |
|||
|
Component clearance |
Bottom 25 mm |
|||
|
Pitch Control |
1-4, 10mm pitch |
|||
|
Power Supply |
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz |
|||
|
Air Supply |
5~6 kg/cm² (4~6 bar) |
|||
|
Magazine Capacity |
4 magazines (1 on the lifter platform, 1 on the upper conveyor, 2 on the lower conveyor) |
|||
|
Machine Dimension (LxWxH) |
1360x765x1200mm |
1650x765x1200mm |
1750x930x1200mm |
1750x980x1200mm |
|
Net Weight |
190kgs |
210kgs |
248kgs |
258kgs |
|
Shipping Dimension (LxWxH) |
1510x915x1400mm |
1800x915x1400mm |
1800x1080x1400mm |
1800x1130x1400mm |
|
Gross Weight |
265kgs |
290kgs |
329kgs |
341kgs |
