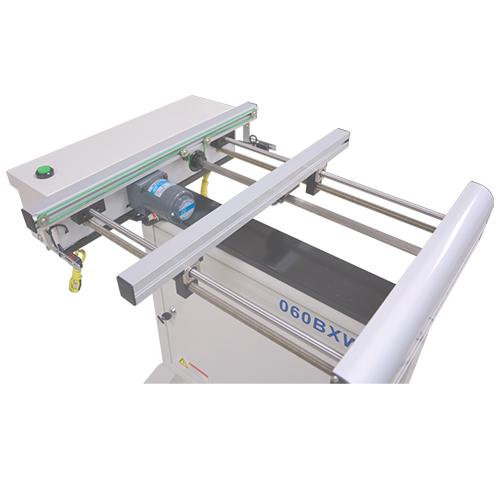

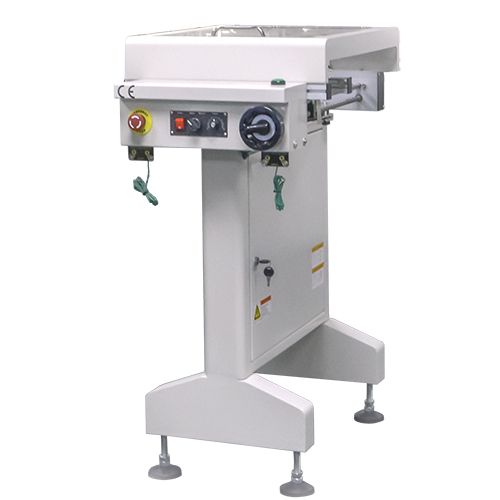

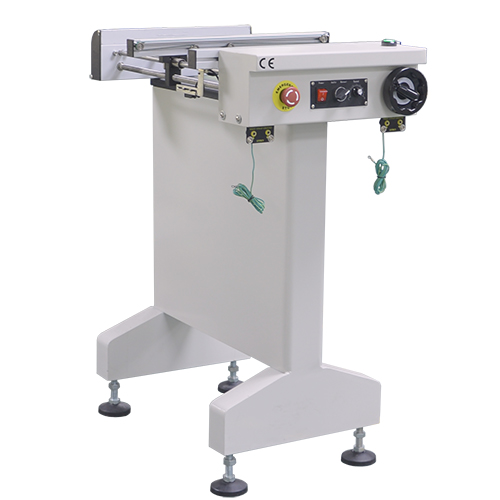

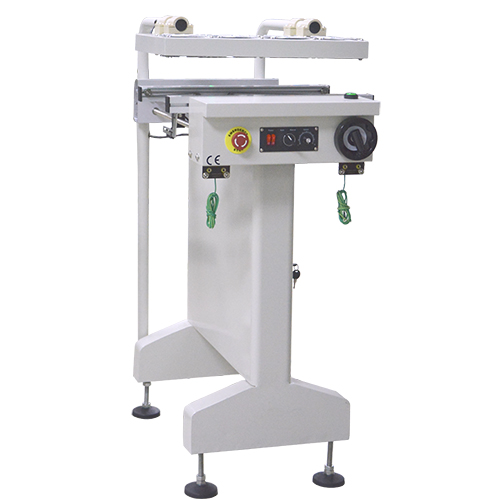

Linking Conveyors
• All Metal Solid Design Linking Conveyor
• By Pass and Inspection Mode
• Stainless Steel Lead Screw Width Adjustment
• Conveyor width adjustment by hand crank
• Adjustable Speed Control
• Controlled by PLC
• Panasonic Sensor CX-422
• 4.8mm ESD Flat Belt
• SMEMA compatible
• CE compliance
Product Description
Application:
This unit is used in the SMT line to connect SMD machines effectively through SMEMA interface, it has visual inspection, manual assembly and PCB buffering functions.
Specifications:
|
Description
|
Linking Conveyors 500mm,600mm, M, X size
|
|||
|
Model No
|
050BXW1
|
060BXW1
|
050BMW1
|
060BMW1
|
|
Max PCB Size (LxW)
|
460x460mm
|
535x460mm
|
460x350mm
|
535x350mm
|
|
Fixed Rail
|
Front
|
|||
|
Flow Direction
|
Left to right (Option right to left)
|
|||
|
PCB Edge Support
|
3 mm
|
|||
|
Conveyor Speed
|
2~11 m/min
|
|||
|
Conveyor Height
|
920 ± 30 mm (For SMT application)
|
|||
|
Power Supply
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
|||
|
Machine Dimension (LxWxH)
|
500x750x900mm
|
600x750x900mm
|
500x650x900mm
|
600x650x900mm
|
|
Net Weight
|
34kgs
|
48kgs
|
30kgs
|
43kgs
|
|
Shipping Dimension (LxWxH)
|
650x900x1100mm
|
750x900x1100mm
|
650x800x1100mm
|
650x800x1100mm
|
|
Gross Weight
|
64kgs
|
80kgs
|
58kgs
|
71kgs
|
Options:
• Safety Cover
• Cooling Fan
• Line Central Auto Width Adjustment
• Change from ESD Flat Belt to Pin Chain Conveyor
• Extra Segment
