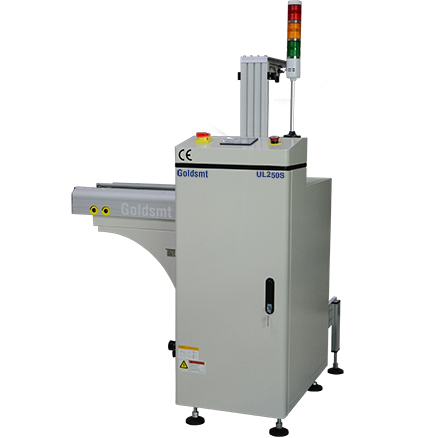

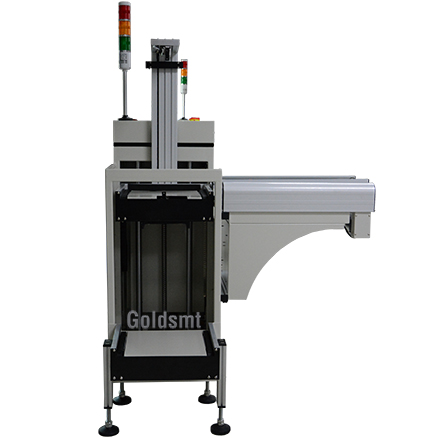

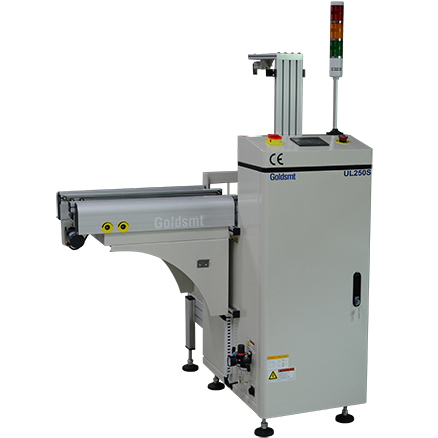

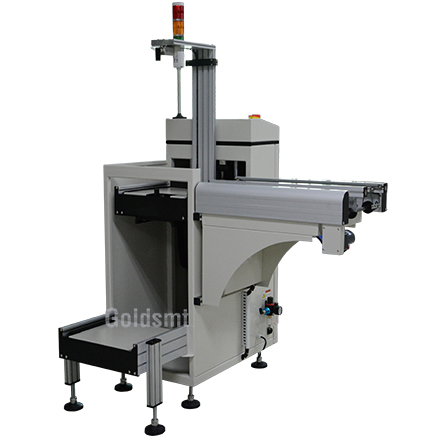

Single Magazine Line Unloader
• Magazine is Manually Placed on Platform
• Exchange Magazine at the Rear of the Machine
• Pressure Regulated on SMC Pneumatic Pusher
• Cast Aluminum Integrated Lifting Platform
• Selectable Pitch Settings
• Controlled by Omron PLC
• 7" HMI Display
• Panasonic Sensor CX-422
• 3-Color Light Tower and Audible Alarm
• SMEMA Compatible
• CE compliance
Product Description
Application:
Single Magazine Line Unloader unloads PCB’s of a SMT production line into one magazine, it has small footprint and specially designed for medium volume productions.
Specifications:
|
Description
|
Single Magazine Line Unloader 250mm,330mm,390mm,460mm
|
|||
|
Model No
|
UL250S
|
UL330S
|
UL390S
|
UL460S
|
| Max PCB Size (LxW) | 350x250mm | 460x330mm | 535x390mm | 535x460mm |
| Magazine Size (LxWxH) | 355x320x563mm | 460x400x563mm | 535x460x570mm | 535x530x570mm |
| Fixed Rail | Front | |||
|
Flow Direction
|
Left to right (Option right to left)
|
|||
|
Conveyor Height
|
920 ± 30 mm (For SMT application)
|
|||
|
Component clearance
|
Bottom 25 mm
|
|||
| Pitch Control | 1-4, 10mm pitch | |||
|
Power Supply
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
|||
|
Air Supply
|
5~6 kg/cm² (4~6 bar)
|
|||
|
Magazine Capacity
|
1 magazine on the lifter platform
|
|||
|
Machine Dimension (LxWxH)
|
1130x1060x1200mm
|
1290x1220x1200mm
|
1460x1330x1200mm
|
1460x1490x1200mm
|
|
Net Weight
|
210kgs
|
230kgs
|
250kgs
|
270kgs
|
|
Shipping Dimension (LxWxH)
|
1280x1220x1400mm
|
1440x1370x1400mm
|
1610x1480x1400mm
|
1610x1640x1400mm
|
|
Gross Weight
|
276kgs
|
307kgs
|
338kgs
|
364kgs
|
Options:
• Safety Cover
• Line Central Auto Width Adjustment
• Customized Magazine Size
Other Options Available on Request
