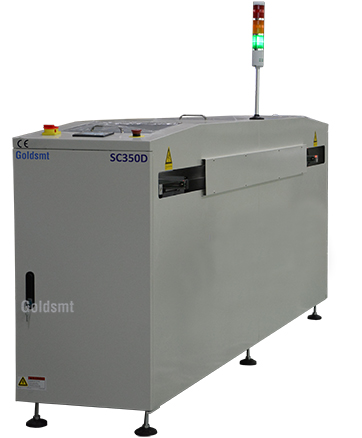

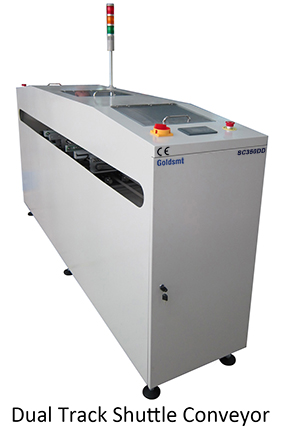

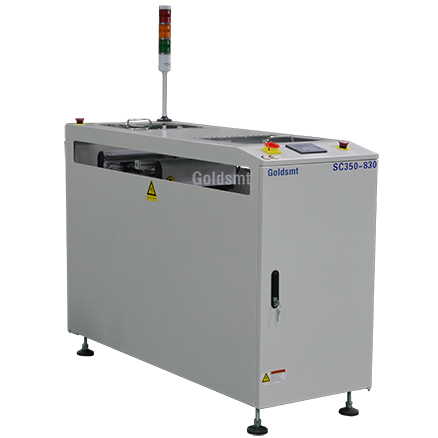

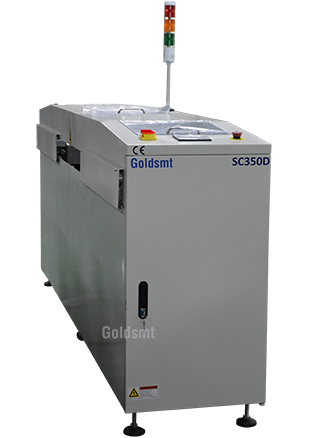

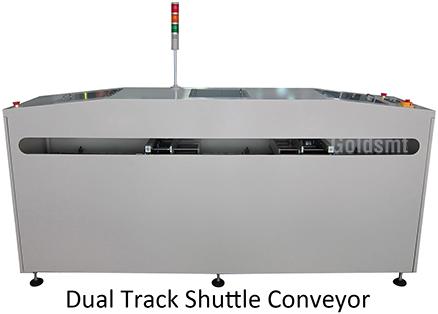

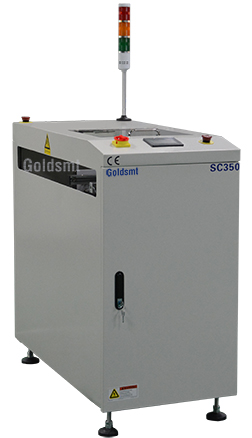

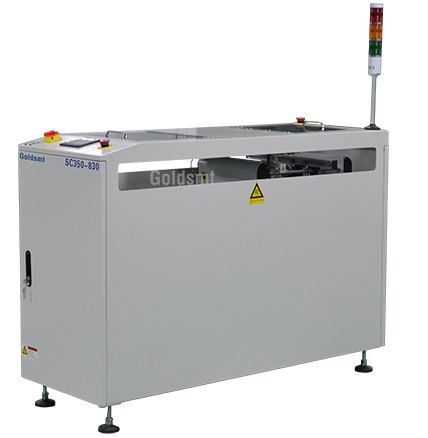

Shuttle Conveyor /Traverser
Good or bad board separation
Line combiner, two pick and places go to a reflow oven
IGUS flex cable
Surrounded with covers to provide highest level of safety
Controlled by Omron PLC
By-pass mode selectable
Panasonic sensor, part No CX-422
9" LCD touch screen control
3-color light tower and audible alarm
SMEMA compatible
CE compliance
Product Description
Application:
Shuttle Conveyor /Traverser is used to redirect flow of PCBs into different channels in a production line.
It is designed to shuttle PCB's to next process. The conveyor can collect PCB's from two lines to one line/ distribute PCB's from one line to two lines.
As a line combiner, two pick and places go to one line combiner, then go to a reflow oven. Or two stencil printers go to one SPI, then SMT.
As a line separator, it can be used after the inspection system. The Pass board goes to unloader. The fail board goes to a rework system. Dual lane is also available.
Note: Actual shuttle distances from process to process vary and should be known when considering this type of applications. Please send us your line layout in order for us to design the ideal solution.
Main Specifications:
Shuttle Conveyor /Traverser is used to redirect flow of PCBs into different channels in a production line.
It is designed to shuttle PCB's to next process. The conveyor can collect PCB's from two lines to one line/ distribute PCB's from one line to two lines.
As a line combiner, two pick and places go to one line combiner, then go to a reflow oven. Or two stencil printers go to one SPI, then SMT.
As a line separator, it can be used after the inspection system. The Pass board goes to unloader. The fail board goes to a rework system. Dual lane is also available.
Note: Actual shuttle distances from process to process vary and should be known when considering this type of applications. Please send us your line layout in order for us to design the ideal solution.
Main Specifications:
Conveyor Height:
|
950 mm ± 30 mm (For SMT application)
|
Flow Direction:
|
Left to right (Right to left, please specify)
|
Fixed Rail:
|
Front (Please specify rear rail fixed)
|
Machine Interface:
|
SMEMA
|
Component Clearance:
|
Up 20 mm Bottom 20 mm (Or specify)
|
PCB Edge Support:
|
3 mm (Or specify)
|
Shuttle distances:
|
Customs-made
|
Power Supply:
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
Order and Shipping Info:
Description
|
Shuttle Conveyor /Traverser 350mm, 460mm
|
|
Model No
|
SC350
|
SC460D (Dual track)
|
Max PCB Size(LxW)
|
460x350 mm
|
535x460 mm
|
Machine Dimension(LxWxH)
|
500x*x1100 mm
|
550x*x1100 mm
|
Net Weight
|
kgs
|
kgs
|
Shipping Dimension(LxWxH)
|
650x* x300 mm
|
700x*x1300 mm
|
Gross Weight
|
kgs
|
kgs
|
* This is a customs-made product. The length is up to the layout of the facility. With the shuttle length changes, the machine length changes also.
