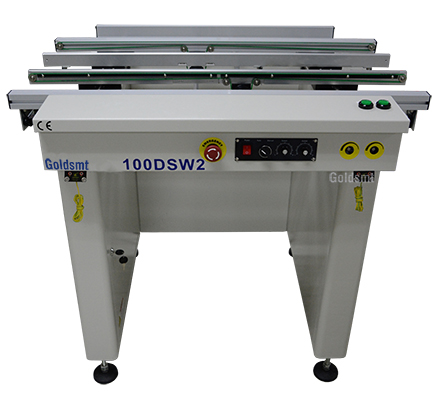

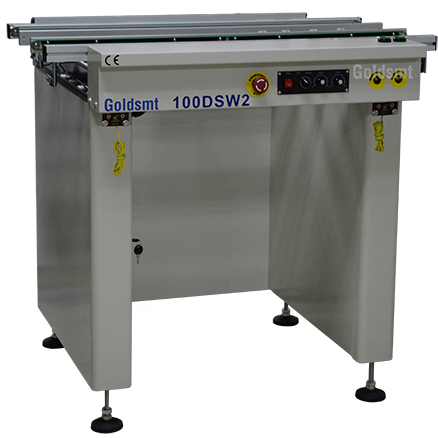

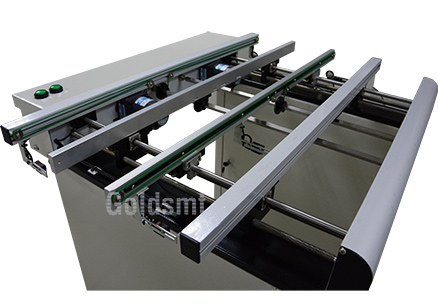

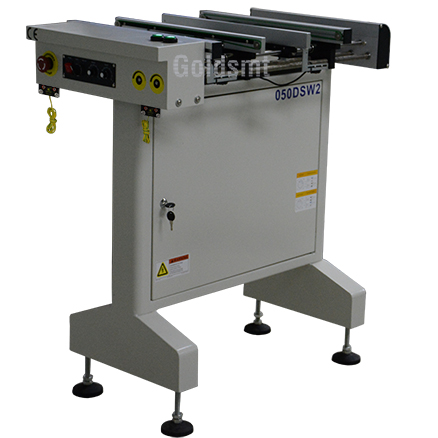

Dual Track Conveyors
• All Metal Solid Design Inspection Conveyor
• By Pass and Inspection Mode
• Stainless Steel Lead Screw Width Adjustment
• Conveyor width adjustment by hand crank
• Adjustable Speed Control
• Controlled by PLC
• Panasonic Sensor CX-422
• 4.8mm ESD Flat Belt
• SMEMA compatible
• CE compliance
Product Description
Application:
Dual Track Conveyors link dual track SMT machines or board handling conveyors
Specifications:
|
Description
|
Dual Track Conveyors 500mm,1000mm
|
|||
|
Model No
|
050DSW2
|
050DMW2
|
100DSW2
|
100DMW2
|
|
Max PCB Size (LxW)
|
350x180mm
|
350x250mm
|
350x180mm
|
350x250mm
|
|
Fixed Rail
|
Front
|
|||
|
Flow Direction
|
Left to right (Option right to left)
|
|||
|
PCB Edge Support
|
3 mm
|
|||
|
Conveyor Speed
|
2~11 m/min
|
|||
|
Conveyor Height
|
920 ± 30 mm (For SMT application)
|
|||
|
Power Supply
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
|||
|
Machine Dimension (LxWxH)
|
500x940x900mm
|
500x1080x900mm
|
100x940x900mm
|
1000x1080x900mm
|
|
Net Weight
|
55kgs
|
61kgs
|
90kgs
|
100kgs
|
|
Shipping Dimension (LxWxH)
|
650x1090x1100mm
|
650x1230x1100mm
|
1150x1090x1100mm
|
1150x1230x1100mm
|
|
Gross Weight
|
89kgs
|
99kgs
|
139kgs
|
153kgs
|
Options:
• Safety Cover
• Cooling Fan
• Line Central Auto Width Adjustment
• Customized Conveyor Length
• Change from ESD Flat Belt to Pin Chain Conveyor
• Extra Segment
