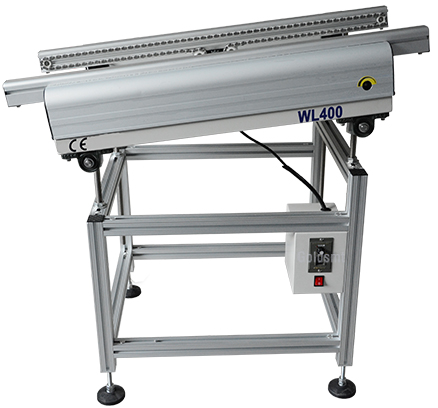

Infeed Conveyor
Robust aluminum frame design
Variable speed control
Height adjustable
CE compliance
Product Description
Application:
The Infeed Conveyor (WL400) is used for transferring of PCBs/ pallets into the solder machine.
Main Specifications:
|
Conveyor Height:
|
Input 800 ~1000 mm
Output 910 ~ 1100 mm
|
|
Inclined angle:
|
3~9° (Or specify)
|
|
Flow Direction:
|
Left to right (Right to left, please specify)
|
|
Fixed Rail:
|
Front (Please specify rear rail fixed)
|
|
Belt Speed:
|
1--12 m/min (Or specify)
|
|
Power Supply:
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
|
Description
|
Infeed Conveyor 350 mm, 400mm, 460 mm
|
||
|
Model No
|
WL350
|
WL400
|
WL460
|
|
Max PCB Size(LxW)
|
1000x350mm
|
1000x400mm
|
1000x460mm
|
|
Machine Dimension(LxWxH)
|
1000x560x950mm
|
1000x600x950mm
|
1000x650x950mm
|
|
Net Weight
|
44kgs
|
50kgs
|
57kgs
|
|
Shipping Dimension(LxWxH)
|
1150x710x1150mm
|
1150x750x1150mm
|
1150x800x1150mm
|
|
Gross Weight
|
82kgs
|
90kgs
|
105kgs
|
Options:
Other options available on request
