Automatic Dual Track Unloader
• Automatic Magazine change-over
• Controlled by PLC
Product Description
|
Description |

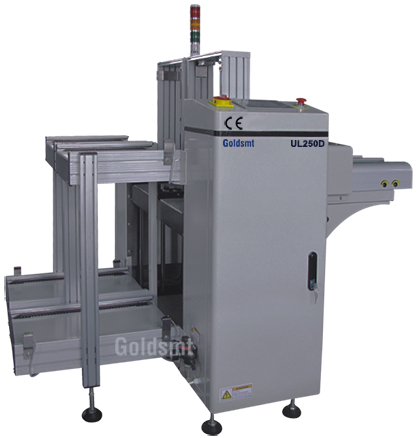

Automatic Dual Track Unloader 250mm,330mm,390mm,460mm |
|||
|
Model No |
UL250D |
UL330D |
UL390D |
UL460D |
|
Max PCB Size (LxW) |
350x250mm |
460x330mm |
535x390mm |
535x460mm |
|
Magazine Size (LxWxH) |
355x320x563mm |
460x400x563mm |
535x460x570mm |
535x530x570mm |
|
Fixed Rail |
Front |
|||
|
Flow Direction |
Left to right (Option right to left) |
|||
|
Conveyor Height |
920 ± 30 mm (For SMT application) |
|||
|
Component clearance |
Bottom 25 mm |
|||
|
Pitch Control |
1-4, 10mm pitch |
|||
|
Power Supply |
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz |
|||
|
Air Supply |
5~6 kg/cm² (4~6 bar) |
|||
|
Magazine Capacity |
6 magazines (2 on the lifter platform, 2 on the upper conveyor, 2 on the lower conveyor) |
|||
|
Machine Dimension (LxWxH) |
1510x1460x1200mm |
1910x1630x1200mm |
2160x1760x1200mm |
2160x1900x1200mm |
|
Net Weight |
320kgs |
350kgs |
380kgs |
410kgs |
|
Shipping Dimension (LxWxH) |
1660x1610x1400mm |
2060x1780x1400mm |
2310x1056x1400mm |
2310x2050x1400mm |
|
Gross Weight |
366kgs |
405kgs |
433kgs |
456kgs |
