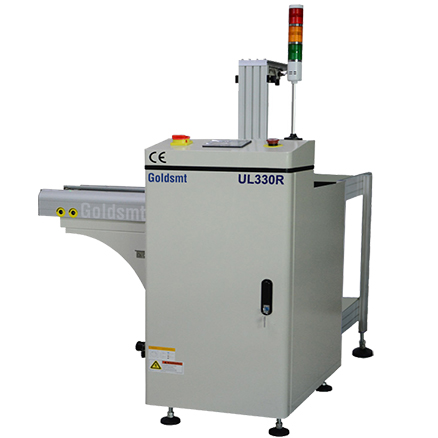

Automatic Right Angle Unloader
For length limited application
Automatic empty magazine load and full magazine offload
Exchange magazine from the rear of the machine
Pressure regulated on SMC pneumatic pusher
Selectable Pitch Settings
Controlled by PLC
9" HMI Display
Panasonic Sensor CX-422
3-Color Light Tower and Audible Alarm
SMEMA Compatible
CE compliance
Product Description
Application:
Automatic Right Angle Unloader is used at the end of SMT line for unloading of PCBs from the production line into the magazine.
Main Specifications:
|
Conveyor Height:
|
950 ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Optional Right to Left)
|
|
Fixed Rail:
|
Front (Optional rear rail fixed)
|
|
Machine Interface:
|
SMEMA
|
|
Component clearance:
|
Bottom 15 mm (Or specify)
|
|
PCB Loading Time:
|
± 6 seconds
|
|
Magazine Change-over Time:
|
± 22 seconds
|
|
Pitch Control:
|
1-4, 10mm pitch (Or specify)
|
|
Magazine Capacity:
|
1 magazine on the lifter platform,
1 empty magazine on the upper output magazine conveyor
1 full magazine on the lower input magazine conveyor (Or specify)
|
|
Max total magazine weight:
|
50 kgs each (Or specify)
|
|
Power Supply:
|
AC220 ±10v, 50Hz /110V ±10v, 60Hz
|
|
Air Supply:
|
5~6Kg/cm² (4~6 bar)
|
Order and Shipping Info:
|
Description
|
Automatic Right Angle Unloader 250mm,330mm,390mm,460mm
|
|||
|
Model No
|
UL250R
|
UL330R
|
UL390R
|
UL460R
|
|
Max PCB Size(LxW)
|
350x250mm
|
460x330mm
|
535x390mm
|
535x460mm
|
|
Magazine Size (LxWxH)
|
355x320x563mm
|
460x400x563mm
|
535x460x570mm
|
535x530x570mm
|
|
Machine Dimension(LxWxH)
|
1130x1060x1200mm
|
1290x1220x1200mm
|
1460x1350x1200mm
|
1460x1490x1200mm
|
|
Net Weight
|
220kgs
|
240 kgs
|
280 kgs
|
290kgs
|
|
Shipping Dimension(LxWxH)
|
1280x1210x1400mm
|
1440x1370x1400mm
|
1610x1400x1400mm
|
1610x1640x1400mm
|
|
Gross Weight
|
255kgs
|
283kgs
|
336kgs
|
352kgs
|
Options:
Automatic Width Adjustment
Safety Cover
Additional Magazine Capacity
Other options available on request
