Insertion Line
All metal solid design Insertion Line
Stainless steel lead screw width adjustment
Ergonomically designed arm rest
Adjustable Speed Control
Keyence Japan sensor control
Conveyor length could be customer made
2.4 meter, 3.0 meter, 4.5 meter etc.
CE compliance
Product Description
Application:
The Insertion Line is used for manual insertion assembly for pallets or PCBs
Main Specifications:
|
Conveyor Height:
|
950 ± 30 mm (For SMT application)
|
|
PCB Width:
|
50-460mm (Width could be customer made)
|
|
Flow Direction:
|
Left to right (Right to left, please specify)
|
|
Fixed rail:
|
Front (Please specify rear rail fixed)
|
|
Component clearance:
|
Bottom 30mm (Or specify)
|
|
Belt Speed:
|
1--12 m/min (Or specify)
|
|
Power Supply:
|
AC220V/110V, 50/60 HZ, 1 phase
|
Order and Shipping Info:
|
Model No |
Description |
Max PCB Size |
Machine Size( L×W×H ) |
|

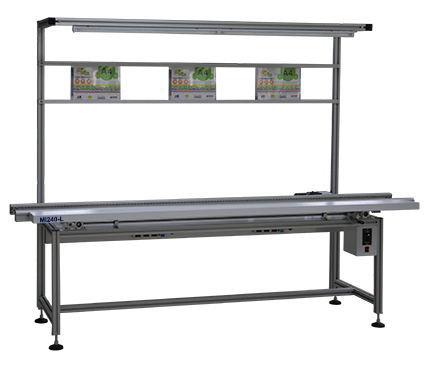

MI240-L |
2.4 M Insertion Line |
50~460mm |
2400×700×1850mm |
|

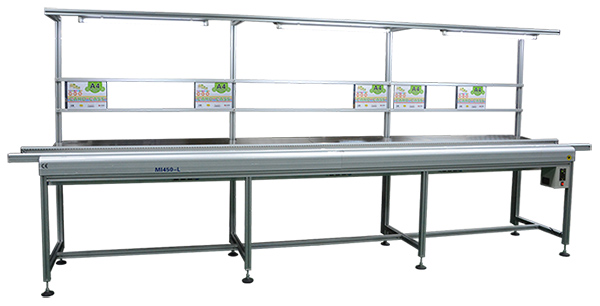

MI450-L |
4.5 M Insertion Line |
50~460mm |
4500×700×1850mm |
