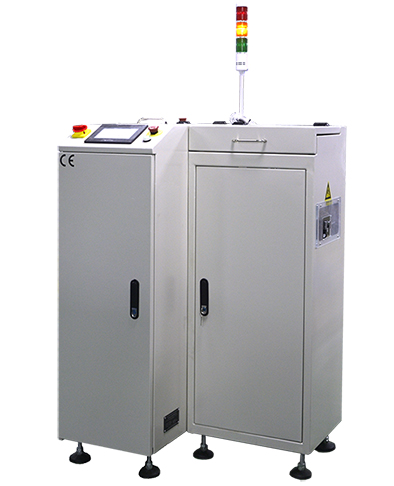

High Speed Mini Loader & Unloader
• Automatic Full Magazine Load and Full Magazine
Unload
• Pressure Regulated on SMC Pneumatic Claw
• Cast Aluminum Integrated Lifting Platform
• Selectable Pitch Settings
• Controlled by Omron PLC
• 7" HMI Display
• Panasonic Sensor CX-422
• 3-Color Light Tower and Audible Alarm
• SMEMA Compatible
• CE compliance
Product Description
Application:
High Speed Mini Loader & Unloader is designed for loading/unloading of substrates, leadframes or carriers.
Specifications:
|
Description
|
High Speed Mini Loader & Unloader
|
|
Model No
|
SL27U
|
|
Power Supply
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
|
Air Supply
|
5~6 kg/cm² (4~6 bar)
|
|
Conveyor Height
|
920 ± 30 mm
|
|
Flow Direction
|
Left to right (Option right to left)
|
|
Fixed Rail
|
Front
|
|
Component clearance
|
Bottom 30 mm
|
|
Pitch Control
|
1-4, 5.08 mm pitch
|
|
Magazine Capacity
|
22 magazines(1 on the lifter platform, 11 on the upper conveyor, 11 on the lower conveyor)
|
|
Loaded Weight
|
Max 5 kilos each magazine
|
|
Max PCB Size (LxW)
|
240x26.5 mm (Custom made)
|
|
Magazine Size (LxWxH)
|
242.8x33.3x118.72 mm (Custom made)
|
