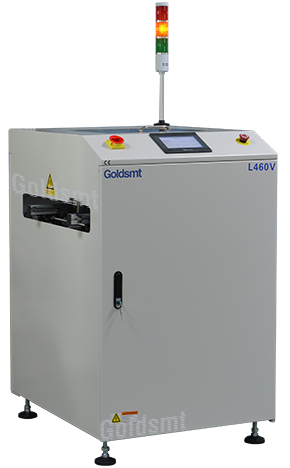

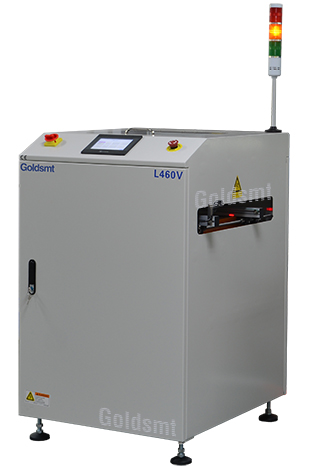

Vacuum Loader

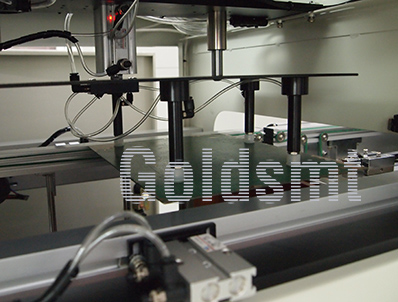

SMC Cylinder to Drive 4 groups of Vacuum Arm
Individual vacuum generator device for stable transfer
Vacuum Pad to Level with Lifting Platform
High Pressure Vacuum Design
Flexible Vacuum Pad Positioning
Pass Through Mode
Controlled by PLC
9" HMI Display
Panasonic Sensor CX-422
4.8mm ESD Flat Belt
3-Color Light Tower and Audible Alarm
SMEMA Compatible
CE compliance
Product Description
Application:
Vacuum Loader sends bare PCB's onto the SMT production line using vacuum pad.
Main Specifications:
|
Conveyor Height:
|
950 ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Optional Right to left)
|
|
Fixed Rail:
|
Front (Optional rear rail fixed)
|
|
PCB Thickness:
|
0.6~4 mm
|
|
PCB Stack Capacity:
|
200 mm
|
|
PCB Cycle Time:
|
± 9 seconds
|
|
Conveyor Speed:
|
1-15m/min adjustable
|
| Machine Interface: | SMEMA |
|
Power Supply:
|
AC220 ±10v, 50Hz /110V ±10v, 60Hz
|
|
Air Supply:
|
5~6 kg/cm² (4~6 bar)
|
Order and Shipping Info:
|
Description
|
Vacuum Loader 350 mm, 460mm, 510mm
|
||
|
Model No
|
L350V
|
L460V
|
L510V-610
|
|
Max PCB Size(LxW)
|
535x350mm
|
535x460mm
|
610x510mm
|
|
Machine Dimension(LxWxH)
|
695x750x1250mm
|
795x860x1250mm
|
920x860x1250mm
|
|
Net Weight
|
150kgs
|
190 kgs
|
220kgs
|
|
Shipping Dimension(LxWxH)
|
845x900x1450mm
|
945x1010x1450mm
|
1070x1010x1450mm
|
|
Gross Weight
|
193kgs
|
238kgs
|
283kgs
|
Options:
Line Central Auto Width Adjustment, Option Part Number: AW011-Vacuum Loader
With Batch Counter & Alarm, Option Part Number: BC012
