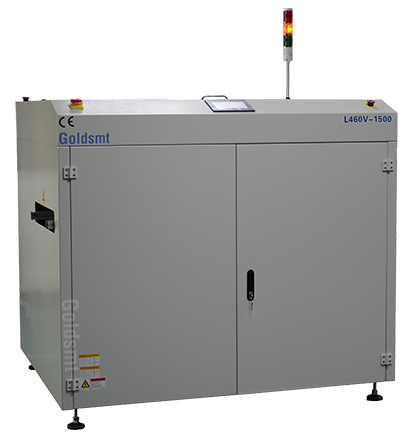

LED Board Vacuum Loader

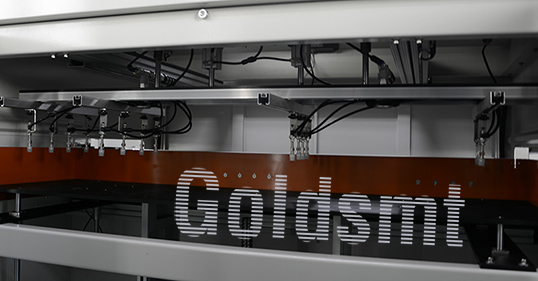

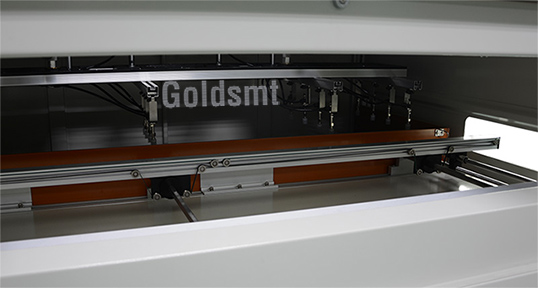

SMC cylinder to drive 4 groups of sucker up and down
Work with lifting table to suck at the same level height to ensure stability
Sucker design, high pressure sucking, suck location adjustable
Controlled by PLC
Panasonic sensor, part No CX-422
9” LCD touch screen control
4.8 mm ESD flat belt
3-color light tower and audible alarm
CE compliance
Product Description
Application:
LED Board Vacumm Loader is used for automatic loading for bare PCBs up to 1500mm long in LED board production line.
Main Specifications:
|
Conveyor Height:
|
950 mm ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Right to left, please specify)
|
|
Fixed Rail:
|
Front (Please specify rear rail fixed)
|
|
Machine Interface:
|
SMEMA
|
|
Max PCBs capacity:
|
333 pcs (0.6 mm thick PCB)
|
|
PCB Edge Support:
|
3 mm (Or specify)
|
|
PCB Loading Time:
|
± 10 seconds
|
|
Belt Speed:
|
1--12 m/min (Or specify)
|
|
Power Supply:
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
|
Air supply:
|
5~6Kg/cm² (4~6 bar)
|
|
Board width:
|
280 mm (S), 350 mm (M), 400 mm (L), 460 mm (X)
|
Order and Shipping Info:
|
Description
|
LED Board Vacuum Loader
|
|
|
Model No.
|
L460V-1500
|
L460V-1200
|
|

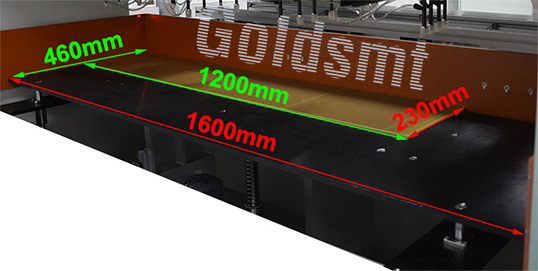

Max PCB Size(LxW)
|
1500x460 mm
|
1200x460 mm
|
|
Machine Dimension(LxWxH)
|
1687x1273x1500 mm
|
1387x1273x1500 mm
|
|
Net Weight
|
350 kgs
|
326 kgs
|
|
Shipping Dimension(LxWxH)
|
1770x1420x1700 mm
|
1470x1420x1700 mm
|
|
Gross Weight
|
450 kgs
|
395 kgs
|
Options:
Other options available on request
