Bare Board Destacker
Large stack of PCB capacity
Pass-Through Function
Controlled by PLC
SMC Cylinder as Pusher
9" HMI Display
Panasonic Sensor CX-422
2.5mm ESD Flat Belt
Pre-warning Low Stack Sensor
Short PCB Cycle Time
3-Color Light Tower and Audible Alarm
SMEMA Compatible
CE compliance
Product Description
Application:

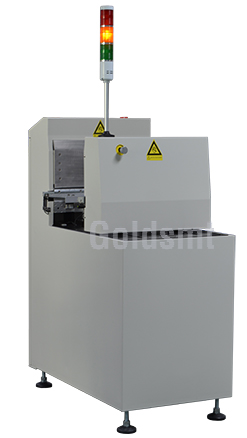

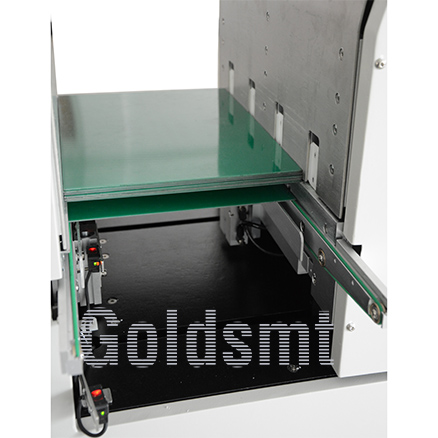

Bare Board Destacker is a top loading, drop style PCB de-stacker. It is used for loading of bare PCBs to the SMT production line. A large stack of unpopulated PCB's is placed above the ESD belt conveyor. Unique separation cams take one PCB from the bottom of the stack and lower it onto the ESD belt conveyor.
Main Specifications:
Conveyor Height:
|
950 ± 30 mm (For SMT application)
|
Flow Direction:
|
Left to right (Optional Right to left)
|
Fixed Rail:
|
Front (Optional rear rail fixed)
|
PCB Thickness:
|
0.6 mm - 4 mm
|
Stack Height:
|
200 mm
|
PCB Cycle Time:
|
± 10 seconds
|
Conveyor Speed: | 1-15m/min adjustable |
Machine Interface: | SMEMA |
Power Supply:
|
AC220 ±10v, 50Hz /110V ±10v, 60Hz
|
Air Supply:
|
5~6 kg/cm² (4~6 bar)
|
Order and Shipping Info:
Description
|

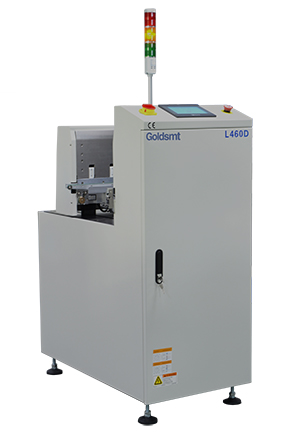

Bare Board Destacker 350mm,400mm,460mm
|
||
Model No
|
L350D
|
L400D
|
L460D
|
Max PCB Size(LxW)
|
535x350mm
|
535x400mm
|
535x460mm
|
Machine Dimension(LxWxH)
|
600x850x1250mm
|
600x900x1250mm
|
600x960x1250mm
|
Net Weight
|
170kgs
|
175kgs
|
180kgs
|
Shipping Dimension(LxWxH)
|
750x1000x1450mm
|
750x1050x1450mm
|
750x1100x1450mm
|
Gross Weight
|
220kgs
|
223kgs
|
233kgs
|
Options:

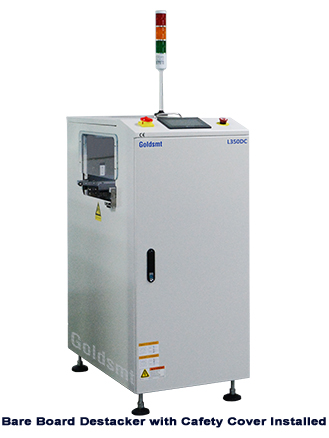

Safety Cover, Option Part Number: SC001
Line Central Auto Width Adjustment, Option Part Number: AW002
Other options available on request
