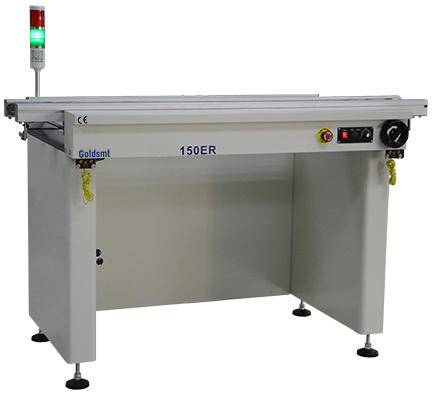

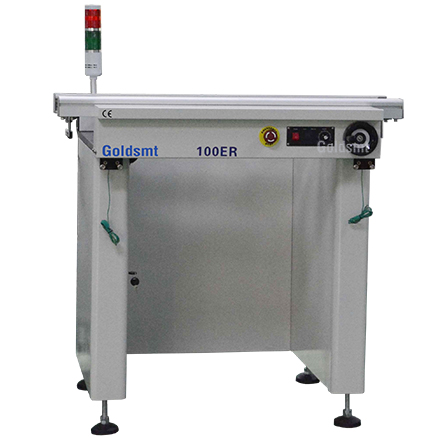

Edge Roller Conveyor 1500mm

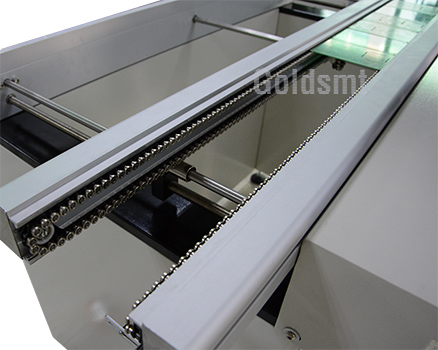

All metal solid design Edge Roller conveyor

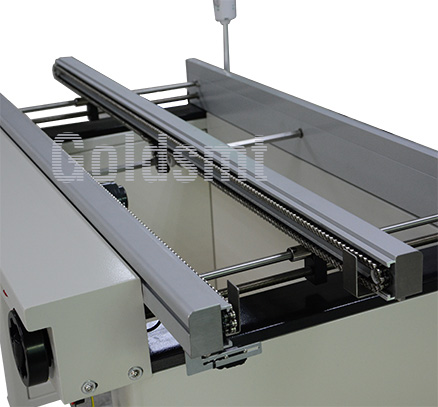

Stainless steel lead screw width adjustment
Ergonomically designed arm rest

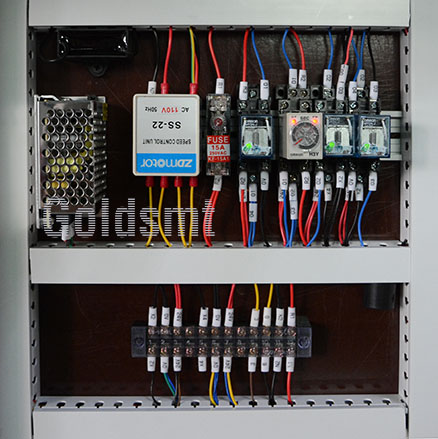

Adjustable Speed Control
No PLC
Panasonic sensor, part No CX-422
CE compliance
Product Description
Application:
The Edge Roller Conveyor is used for transferring of PCBs/ pallets in the production line after reflow oven. Sensor is installed at the beginning and end of the conveyor.
No control. Motor keeps on running. Hard stop at the end. When it is full, it alarms the operator to remove the PCB.
Main Specifications:
|
Conveyor Height:
|
950 mm ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Right to left, please specify)
|
| Fixed Rail: | Front (Please specify rear rail fixed) |
| Component Clearance: | Bottom 30mm (Or specify) |
| PCB Edge Support: | 3 mm (Or specify) |
| Belt Speed: | 1--12 m/min (Or specify) |
| Power Supply: | AC220 ±10v, 50 Hz /110V ±10v, 60 Hz |
Order and Shipping Info:
| Description |
Edge Roller Conveyor 1500mm
|
||
|
Model No
|
150ERM
|
150ERL
|
150ER
|
|
Max PCB Size(LxW)
|
535x350mm
|
535x400mm
|
535x460mm
|
|
Machine Dimension(LxWxH)
|
1500x650x950mm
|
1500x700x950mm
|
1500x750x900mm
|
|
Net Weight
|
79kgs
|
81kgs
|
84kgs
|
|
Shipping Dimension(LxWxH)
|
1650x800x1150mm
|
1650x850x1150mm
|
1650x900x1150mm
|
|
Gross Weight
|
142kgs
|
146kgs
|
153kgs
|
Option:
Cooling fan
Lighting Frame
Safety cover
Conveyor Length and Width
Automatic conveyor width adjustment
Electrical conveyor width adjustment
PLC
Other options available on request
