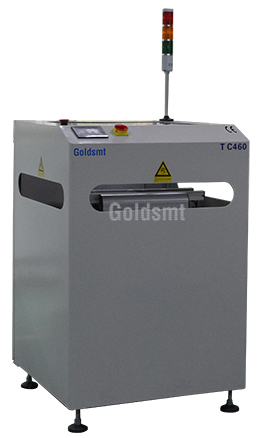

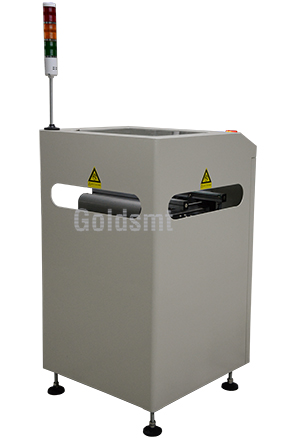

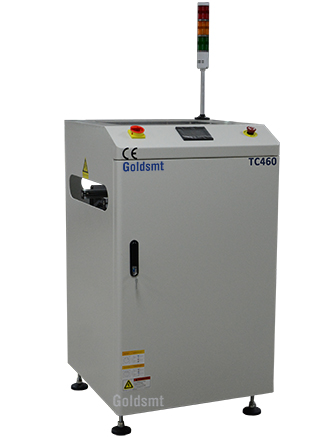

Turn Conveyor
Turning 90°clockwise or counter-clockwise
Motor rotates for precise alignment
Pass-Through Function
Safety sensor installed to enhance safety
Conveyor width adjustment hand crank
Controlled by Omron PLC
Panasonic sensor, part No CX-422
9" LCD touch screen control
3-color light tower and audible alarm
SMEMA compatible
CE compliance
Product Description
Application:
Turn Conveyor is used to transfer PCBs around corners for continued process flow. Available in clock wise or counter clock wise rotation.
Turn Conveyor is used to transfer PCBs around corners for continued process flow. Available in clock wise or counter clock wise rotation.
The PCB is accepted and transferred to the end of the rails. The carriage shuttles forward and then turns 90 degrees. The carriage shuttles forward to align with the next process to deliver the PCB. Once transferred, the carriage returns home to request another PCB.
Main Specifications:
Main Specifications:
|
Conveyor Height:
|
950 ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Right to left, please specify)
|
|
Fixed Rail:
|
Front (Please specify rear rail fixed)
|
|
Machine Interface:
|
SMEMA
|
|
PCB Width:
|
50~460 mm (Or specify)
|
|
Component Clearance:
|
Top 20 mm, bottom 20mm (Or specify)
|
|
PCB Edge Support:
|
3 mm (Or specify)
|
|
Belt Speed:
|
1--12 m/min (Or specify
|
|
Power Supply:
|
AC220 ±10v, 50Hz /110V ±10v, 60Hz
|
Order and Shipping Info:
|
Description
|
Turn Conveyor 350mm, 460mm
|
|
|
Model No
|
TC350
|
TC460
|
|
Max PCB Size(LxW)
|
460x350mm
|
535x460mm
|
|
Machine Dimension(LxWxH)
|
700x700x1250mm
|
800x800x1250mm
|
|
Net Weight
|
190kgs
|
230kgs
|
|
Shipping Dimension(LxWxH)
|
850x850x1450mm
|
950x950x1450mm
|
|
Gross Weight
|
232kgs
|
278kgs
|
Options:
Good or bad board separation
Cantilevered input or output conveyor
Automatic conveyor width adjustment
Electrical conveyor width adjustment
Flow direction can be customer made
Other options available on request
