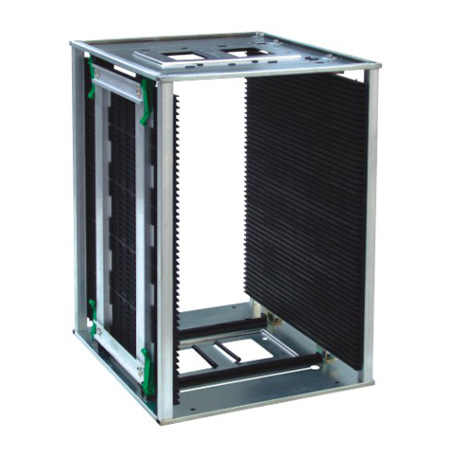

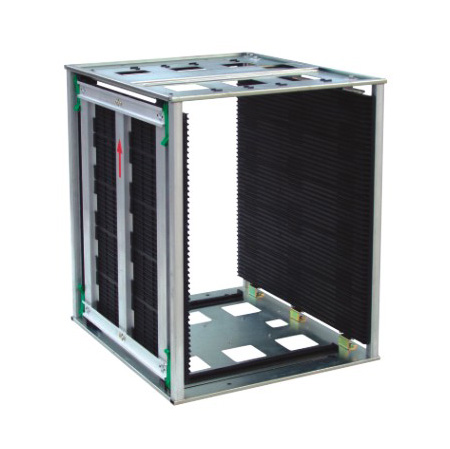

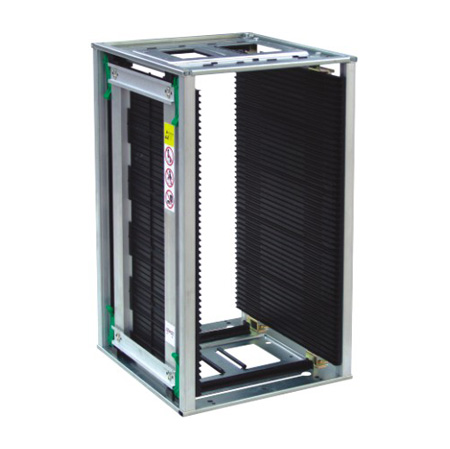

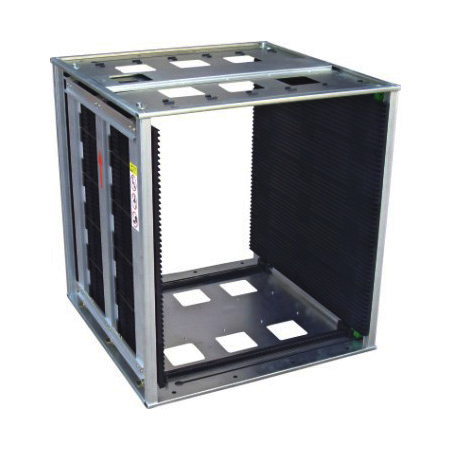

ESD Magazine Rack
Rigid Steel & Aluminium Framework
Quick adjustable width with clamping Lever

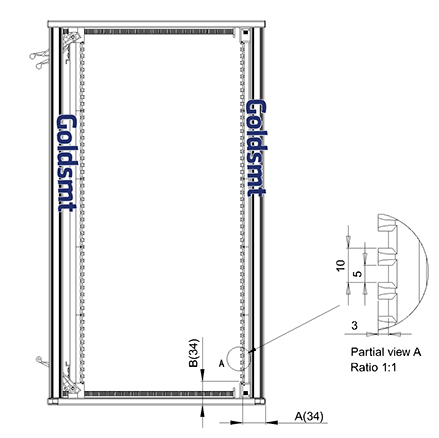

Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
Surface resistance: 104~106 Ω/106-109Ω
Hi-temp Type: heat resistant to 180°C
Product Description
Application:
ESD magazine rack is designed for PCBs manufacture, assembly, storage and transfer. Quick Adjust by rack and pinion with locking lever.
Technical Specifications:
Common type (60°C) and heat-resistance type(120°C, 160~200°C) are available
Surface resistance: 104~106 Ω/106-109Ω
Adjustment: Lever/Gear Track
Adjustable Width: 50-250/330/390/460mm
Storage capacity: 50pcs
Gear track allow easy operation
The top and bottom boards are made of metal.
Order and Shipping Info:
|
Model
|
PCB-250C
|
PCB-330C
|
PCB-390C
|
PCB-460C
|
|

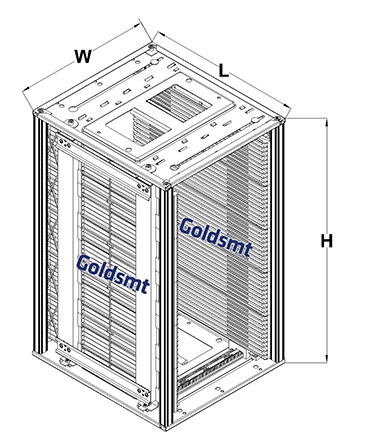

Overall Dimensions(L×W×H)
|
355x320x563mm
|
460x400x563mm
|
535x460x570mm
|
535x530x570mm
|
|
Shipping Dimension(L×W×H)
|
560x380x120mm
|
560x480x120mm
|
560x550x120mm
|
560x600x120mm
|
|
Weight
|
6.5 kgs
|
9 kgs
|
10.5 kgs
|
11.2 kgs
|
Options:
ESD Magazine Rack size can be customized according to requirements
