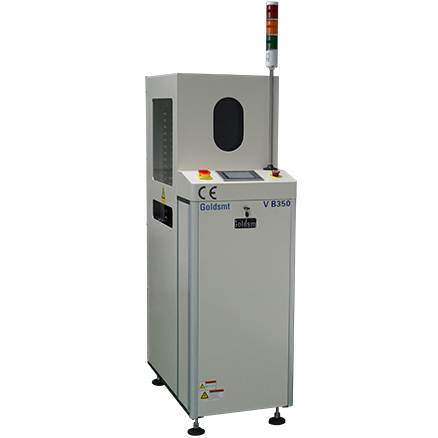

FIFO Buffer
• 24 pcs PCBs storing capacity
• Store NG/OK PCBs automatically
• FIFO (first in first out), LIFO (last in first out)
• Pass through function
• Controlled by Omron PLC
• Panasonic sensor, part no CX-422
• 7" LCD touch screen control
• 3-color light tower and audible alarm
• Selectable pitch settings
• SMEMA compatible
• CE compliance
Product Description
Application:
FIFO/LIFO Buffer is used between SMD equipments (in SMT Line) as a buffer, it can help balance the flow of your production line by storing work temporarily in process.
Specifications:
Description
|
FIFO/LIFO Buffer 350mm, 460mm
|
|
Model No
|
VB350
|
VB460
|
Max PCB Size (LxW) | 460x350mm | 535x460mm |
Fixed Rail | Front | |
Flow Direction | Left to right (Option right to left) | |
Conveyor Height
|
920 ± 30 mm (For SMT application)
|
|
Component clearance | Top 10 mm Bottom 10 mm | |
Max PCBs capacity
|
24 pcs (Or specify)
|
|
Pitch Control
|
1-4, 23 mm pitch (Or specify)
|
|
Width adjustment
|
Motorized Width Adjustment
|
|
Power Supply | AC220 ±10v, 50 Hz /110V ±10v, 60 Hz | |
Air Supply | 5~6 kg/cm² (4~6 bar) | |
Machine Dimension (LxWxH)
|
502x850x1650mm
|
610x995x1650mm
|
Net Weight
|
235kgs
|
278kgs
|
Shipping Dimension (LxWxH)
|
652x1000x1850mm
|
760x1555x1850mm
|
Gross Weight
|
302kgs
|
369kgs
|
Options:

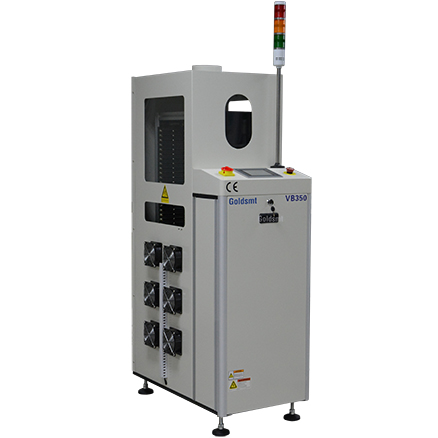

• Cooling fan
• Add Rail in one or both sides
Other options available on request
