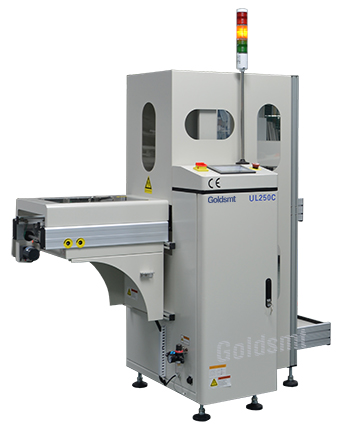

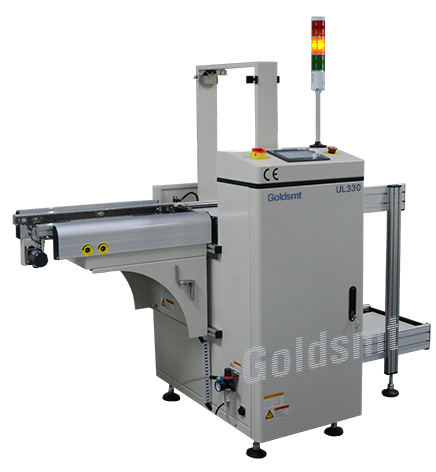

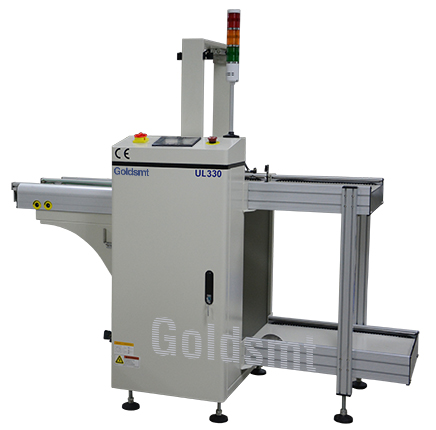

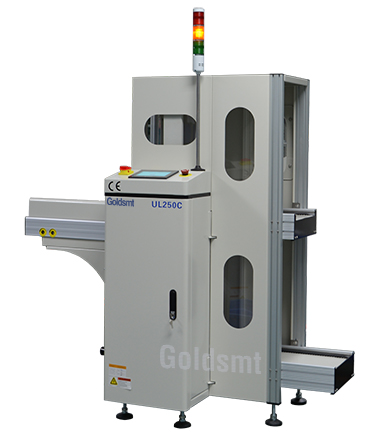

Multi Magazine Line Unloader
• Automatic magazine change-over
• Pressure Regulated on SMC Pneumatic Pusher
• Cast Aluminum Integrated Lifting Platform
• Selectable Pitch Settings
• Controlled by Omron PLC
• 7" HMI Display
• Panasonic Sensor CX-422
• 4.8mm ESD Flat Belt
• 3-Color Light Tower and Audible Alarm
• SMEMA Compatible
• CE compliance
Product Description
Application:
Multi Magazine Line Unloader continuously unloads PCBs from SMT assembly line into the magazine by a specially designed pusher.
The magazine indexes to the next position and is ready for the following unloading cycle.
Specifications:
|
Description
|
Multi Magazine Line Unloader 250mm,330mm,390mm,460mm
|
|||
|
Model No
|
UL250
|
UL330
|
UL390
|
UL460
|
| Max PCB Size (LxW) | 350x250mm | 460x330mm | 535x390mm | 535x460mm |
| Magazine Size (LxWxH) | 355x320x563mm | 460x400x563mm | 535x460x570mm | 535x530x570mm |
|
Flow Direction
|
Left to right (Option right to left)
|
|||
| Conveyor Height | 920 ± 30 mm (For SMT application) | |||
|
Fixed Rail
|
Front
|
|||
|
Component clearance
|
Bottom 25 mm
|
|||
|
Pitch Control
|
1-4, 10mm pitch
|
|||
|
Magazine Capacity
|

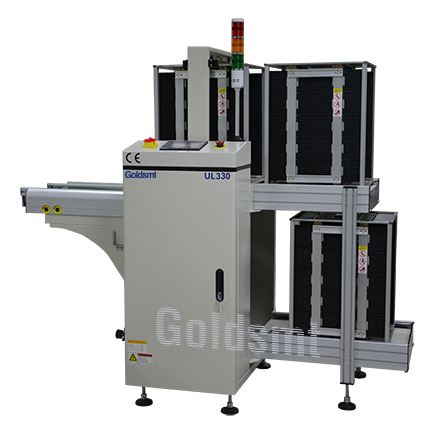

3 magazines (1 on the lifter platform, 1 on the upper conveyor, 1 on the lower conveyor)
|
|||
| Power Supply | AC220 ±10v, 50 Hz /110V ±10v, 60 Hz | |||
| Air Supply | 5~6 kg/cm² (4~6 bar) | |||
|
Machine Dimension (LxWxH)
|
1680x765x1200mm
|
1950x850x1200mm
|
2160x910x1200mm
|
2160x975x1200mm
|
|
Net Weight
|
230kgs
|
250kgs
|
290kgs
|
320kgs
|
|
Shipping Dimension (LxWxH)
|
1830x915x1400mm
|
2100x1000x1400mm
|
2310x1060x1400mm
|
2310x1125x1400mm
|
|
Gross Weight
|
302kgs
|
355kgs
|
386kgs
|
417kgs
|
Options:
• Safety Cover
• Line Central Auto Width Adjustment
• Additional Magazine Capacity
• Customized Magazine Size
Other Options Available on Request
