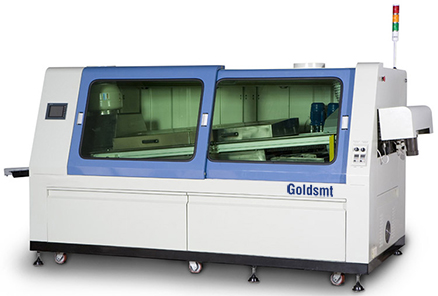

1.3 Meters Preheating Wave Soldering
Solder pot capacity of approximately 370 kilos
Dual Wave

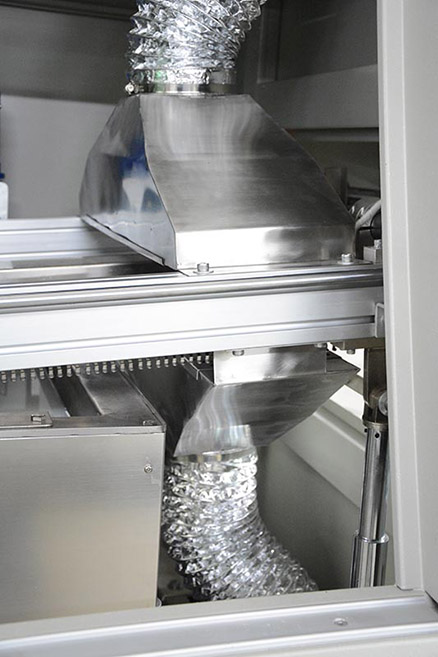

Spray fluxer
Forced hot air convection 1.3 meters 2 section preheating
Self-cleaning titanium finger conveyor

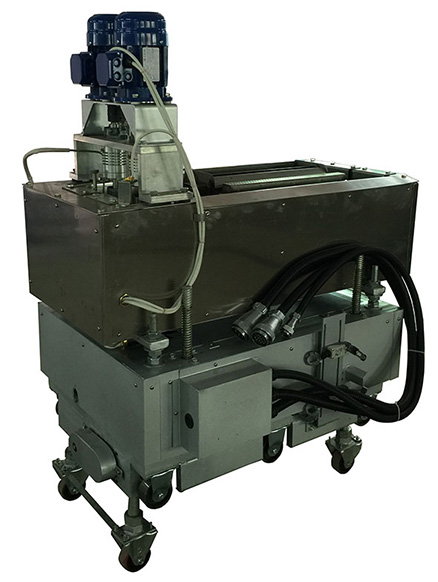

Titanium solder pot
Motorized width adjustment
Motorized solder pot in-out, up-down
Energy saving mode, save power and reduce solder dross

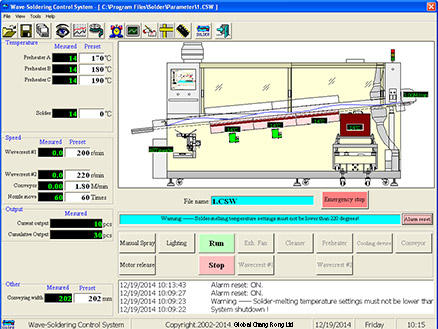

Touch panel control, save up to 100 programs
PCBs up to 350mm,400mm, 450mm, 500mm wide
Product Description
Application:

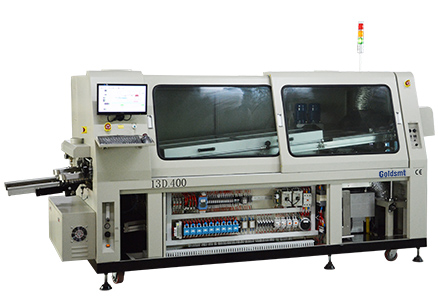

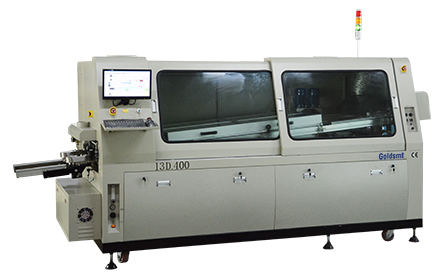

Wave solder system with spray fluxer, available with dual or single wave.1.3 Meters long preheater with a total machine length of 3500mm. Color LCD touch panel control. Titanium-alloy solder pot, capacity of approximately 370 kilos lead free solder.
Wave solder system with spray fluxer, available with dual or single wave.1.3 Meters long preheater with a total machine length of 3500mm. Color LCD touch panel control. Titanium-alloy solder pot, capacity of approximately 370 kilos lead free solder.
Features:
Variable-speed titanium finger conveyor for PCBs up to 350mm,400mm, 450mm, 500mm wide
Automatic conveyor width adjustment and closed-loop control of conveyor speed

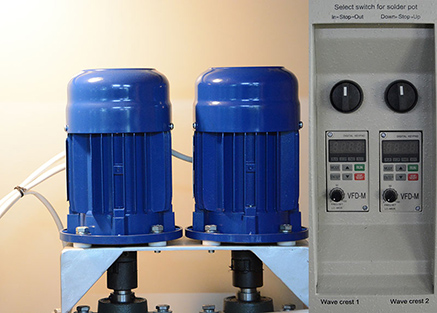

Dual-wave system with two variable-frequency controlled motors and independent adjustment of wave crest height
Energy-saving mode with automatic board detection and timer to turn off pump motors during periods of inactivity—saves power and reduces dross volume
Motor-drive and push-button control of up-down and in-out motion
370 kilos of lead free solder pot capacity
Storage of up to 100 different production parameter files
Fully automatic startup and shutdown according to operator-specified dates and times
Main Specifications:
Power: 3 φ 380 V,50 HZ or 3 ph 220V Air Pressure: 0.4MPa
Total Power: 24 KW Normal Working Power: 5-6 KW
Conveyor Speed: 0.5～2.2m/min Rail Adjust Angle: 4°～7°
Preheating Length: 1300mm Preheating Section: 2 section independent control
Solder Pot Temp: Ambient～300°C Soldering Foot Length: Max 10mm
Spray Gun Movement: step motor Flux Atomization Spray Gun: Auto timing cleanning

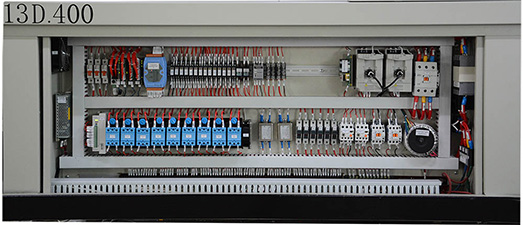

Control Mode: Touchscreen+PLC+SSR Exhaust Fan: 400W
Total Power: 24 KW Normal Working Power: 5-6 KW
Conveyor Speed: 0.5～2.2m/min Rail Adjust Angle: 4°～7°
Preheating Length: 1300mm Preheating Section: 2 section independent control
Solder Pot Temp: Ambient～300°C Soldering Foot Length: Max 10mm
Spray Gun Movement: step motor Flux Atomization Spray Gun: Auto timing cleanning
Control Mode: Touchscreen+PLC+SSR Exhaust Fan: 400W
|
Model No.
|
13D350
|
13D400
|
|
Pin Conveyor Adjust Range
|
50～350mm(W)
|
50～400mm(W)
|
|
Solder Wave Wdith
|
360mm
|
410mm
|
|
Solder Capacity
|
300 kgs
|
420 kgs
|
|
Preheating Length
|
1.3 Meters
|
1.3 Meters
|
|
Dimension
|
3500(L)x1310(W)x1600(H)mm
|
3500(L)x1350(W)x1600(H)mm
|
|
Crate Dimension
|
3880(L)x1630(W)x2060(H)mm
|
3880(L)x1680(W)x2060(H)mm
|
|
Net Weight
|
1000 kgs
|
1050 kgs
|
|
Gross Weight
|
1150 kgs
|
1200 kgs
|
Options Available:
Top preheating, option item number: TP008
Selective spray fluxer, option item number: SF009
Second Titanium solder pot set, option item number: ST013
Second Stainless steel solder pot set, option item number: SS014
Second spray fluxer, option item number: SF012
Smaller solder pot, 370 kilos lead free solder for 400mm wide, 300 kilos lead free solder for 350mm wide, solder pot dimension: 1024*450*203mm, option item number: SP015
Note: 450mm wide, 500mm wide option can be customs made.
