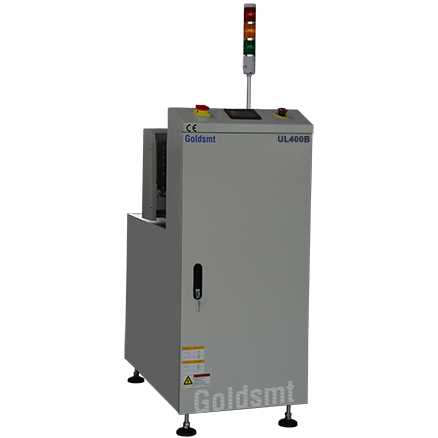

Bare Board Stacker
• Loading of Stacked PCBs
• Pre-warning low stack sensor
• Short PCB cycle time
• Pass-Through Function
• SMC Cylinder as Pusher
• Controlled by Omron PLC
• 7" HMI Display
• Panasonic Sensor CX-422
• 2.5mm ESD Flat Belt
• 3-Color Light Tower and Audible Alarm
• SMEMA Compatible
• CE compliance
Product Description
Application:
Bare Board Stacker is used to collect bare PCBs at the end of SMT production line.
Specifications:
|
Description
|
Bare Board Stacker 350mm,400mm,460mm
|
||
|
Model No
|
UL350B
|
UL400B
|
UL460B
|
|
Max PCB Size(LxW)
|
535x350mm
|
535x400mm
|
535x460mm
|
| Fixed Rail | Front | ||
| PCB Edge Support | 3 mm | ||
| PCB Thickness | 0.6 ~ 4 mm | ||
| Stack Height | 200 mm | ||
| Flow Direction | Left to right (Option right to left) | ||
| Conveyor Height | 920 ± 30 mm (For SMT application) | ||
| Power Supply | AC220 ±10v, 50 Hz /110V ±10v, 60 Hz | ||
| Air Supply | 5~6 kg/cm² (4~6 bar) | ||
|
Machine Dimension(LxWxH)
|
600x850x1250mm
|
600x900x1250mm
|
600x960x1250mm
|
|
Net Weight
|
170kgs
|
175kgs
|
180kgs
|
|
Shipping Dimension(LxWxH)
|
750x1000x1450mm
|
750x1050x1450mm
|
750x1100x1450mm
|
|
Gross Weight
|
220kgs
|
223kgs
|
233kgs
|
Options:
• Safety Cover
• Line Central Auto Width Adjustment
Other options available on request
