Edge Roller Conveyors

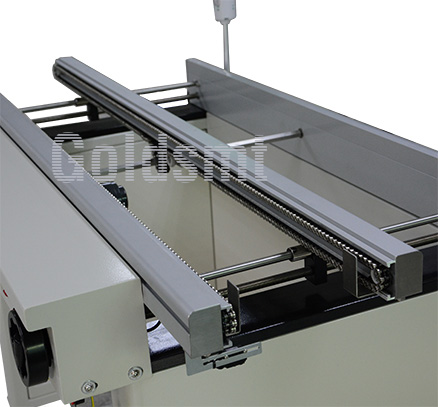

• All metal solid design Edge Roller conveyor

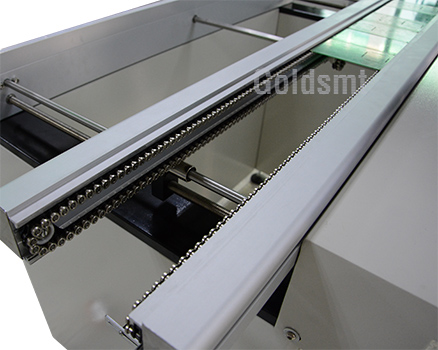

• Carbon steel 35B roller chain
• Stainless steel lead screw width adjustment
• Conveyor width adjustment hand cran
• Ergonomically designed arm rest
• Adjustable Speed Control
• No PLC
• Panasonic sensor, part No CX-422
• CE compliance
Product Description
Application:
Edge Roller Conveyors are used at the end of PCB assembly (SMT) line after reflow oven. Sensor is installed at the beginning and end of the conveyor. No control. Motor keeps on running. Hard stop at the end. When it is full, it alarms the operator to remove the PCB
Specifications:
|
Description
|

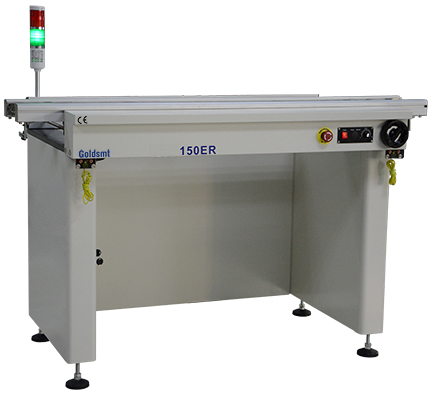

Edge Roller Conveyors
|
||
|
Model No
|
150ERM
|
150ERL
|
150ER
|
|
Max PCB Size(LxW)
|
535x350mm
|
535x400mm
|
535x460mm
|
| Fixed Rail | Front | ||
| Flow Direction | Left to right (Option right to left) | ||
| Component Clearance | Bottom 30 mm | ||
| PCB Edge Support | 3 mm |
||
| Conveyor Speed | 2~11 m/min | ||
| Conveyor Height | 920 ± 30 mm (For SMT application) | ||
| Power Supply | AC220 ±10v, 50 Hz /110V ±10v, 60 Hz | ||
| Machine Dimension(LxWxH) | 1500x650x950 mm | 1500x700x950mm | 1500x750x900mm |
|
Net Weight
|
79kgs
|
81kgs
|
84 kgs
|
|
Shipping Dimension(LxWxH)
|
1650x800x1150mm
|
1650x850x1150mm
|
1650x900x1150mm
|
|
Gross Weight
|
142 kgs
|
146kgs
|
153kgs
|
Options:
• Cooling fan
• Lighting Frame
• Line Central Auto Width Adjustment
• Conveyor Length and Width
• Automatic conveyor width adjustment
• Electrical conveyor width adjustment
• PLC
Other options available on request
