2 Meters Preheating Wave Soldering
Solder pot capacity of 420 kilos
Dual Wave
External spray fluxer
Forced hot air convection 2 eters 3 section preheating
Self-cleaning titanium finger conveyor

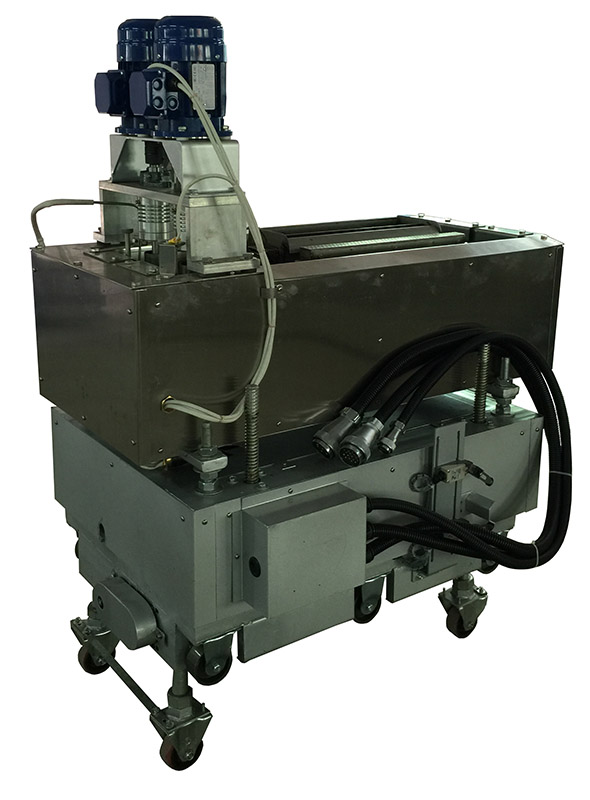

Titanium solder pot
Motorized width adjustment
Motorized solder pot in-out, up-down
Energy saving mode, save power and reduce solder dross
Windows 8 based user friendly operating system
PCBs up to 350mm,400mm is standard
Product Description
Application:

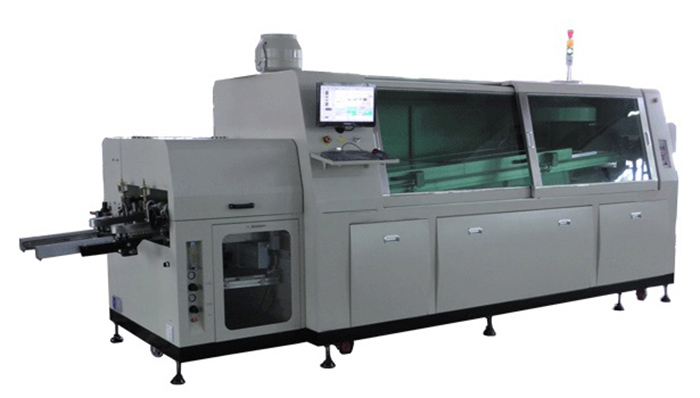

Wave solder system with exterior spray fluxer, available with dual or single wave. 2 Meters long preheater with a total machine length of 4700mm. Computer control. Titanium-alloy solder pot, capacity of approximately 420 kilos lead free solder.
Features:
Variable-speed titanium finger conveyor for PCBs up to 350mm,400mm, 450mm, 500mm wide
Advanced external spray fluxer and filtration system with low pressure atomization
Dual-wave system with two variable-frequency controlled motors and independent adjustment of wave crest height
Automatic conveyor width adjustment and closed-loop control of conveyor speed
Energy-saving mode with automatic board detection and timer to turn off pump motors during periods of inactivity—saves power and reduces dross volume
Motor-drive and push-button control of up-down and in-out motion
420 kilos of lead free solder pot capacity
Windows 8 based user friendly operating system
Fully automatic startup and shutdown according to operator-specified dates and times
Technical Specifications:
Power: 3 φ 380 V,50 HZ or 3 ph 220V Air Pressure: 0.4MPa
Total Power: 39.5 KW Normal Working Power: 8-10 KW
Conveyor Speed: 0.5～2.2m/min Rail Adjust Angle: 4°～7°
Preheating Length: 2000mm Preheating Section 3 section independent control
Solder Pot Temp: Ambient～300°C Soldering Foot Length: Max10mm
Spray Gun Movement: step motor Flux Atomization Spray Gun: auto timing cleanning
Control: Windows 8 based PC+PLC+SSR Exhaust Fan: 400W
|
Model No |
20D350 |
20D400 |
|
Pin Conveyor Adjust Range |
50～350mm(W) |
50～400mm(W) |
|
Solder Wave Wdith |
360mm |
410mm |
|
Solder Capacity |
300 kgs |
420 kgs |
|
Preheating Length |
2 Meters |
2 Meters |
|
Dimension |
4700(L)x1370(W)x1680(H)mm |
4700(L)x1410(W)x1680(H)mm |
|
Crate Dimension |
5160(L)x1700(W)x2100(H)mm |
5160(L)x1740(W)x2100(H)mm |
|
Net Weight |
1550 kgs |
1600 kgs |
|
Gross Weight |
2050 kgs |
2100 kgs |
Options Available:
Top preheating, option item number: TP008
Selective spray fluxer, option item number: SF009
Second Titanium solder pot set, option item number: ST013
Second Stainless steel solder pot set, option item number: SS014
Second spray fluxer, option item number: SF012
Smaller solder pot, 370 kilos lead free solder for 400mm wide, 300 kilos lead free solder for 350mm wide, solder pot dimension: 1024*450*203mm, option item number: SP015
Dual nozzle spray system, main nozzle spray the whole surface, second nozzle is for supplementary spray to location of solder bridge and solder icicle, to reduce bad solder joint, option item number: DN016
Nitrogen soldering, option item number: NS017
Note: 450mm wide, 500mm wide wave soldering can be custom made.
