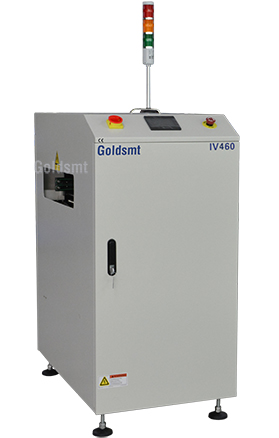

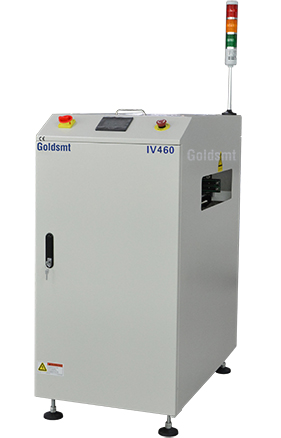

Inverter (Flip)
• Pneumatic stopper to keep PCB in position during
inverting
• Motor invert for precise alignment
• Pass-Through Function
• Safety sensor installed to enhance safety
• Conveyor width adjustment hand crank
• Controlled by Omron PLC
• Panasonic sensor, part No CX-422
• 7" LCD touch screen control
• 3-color light tower and audible alarm
• SMEMA compatible
• CE compliance
Product Description
Application:
The unit is used to inverter a PCB when required in top-side/bottom-side manufacturing.
The PCB is accepted and transferred to the end stop.
Specifications:
|
Description
|
Inverter (Flip) 350mm, 460mm
|
|
|
Model No
|
IV350
|
IV460
|
| Max PCB Size (LxW) | 460x350mm | 535x460mm |
| Fixed Rail | Front | |
| Flow Direction | Left to right (Option right to left) | |
| PCB Edge Support | 3 mm | |
| Belt Speed | 1-12 m/min | |
| Conveyor Height | 920 ± 30 mm (For SMT application) | |
| Component clearance | Top 20 mm Bottom 20 mm | |
|
Power Supply
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
|
|
Air Supply
|
5~6 kg/cm² (4~6 bar)
|
|
|
Machine Dimension (LxWxH)
|
500x900x1250mm
|
600x900x1250mm
|
|
Net Weight
|
150kgs
|
180kgs
|
|
Shipping Dimension (LxWxH)
|
650x1050x1400mm
|
750x1050x1400mm
|
|
Gross Weight
|
191kgs
|
225kgs
|
Options:
• Automatic conveyor width adjustment
• Electrical conveyor width adjustment
• Change from ESD Flat Belt to Pin Chain Conveyor
Other options available on request
