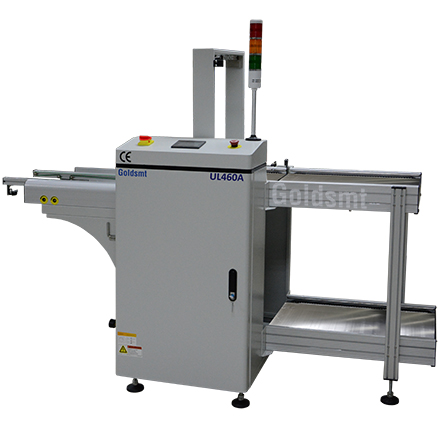

Adjustable Magazine Unloader
• Automatic Magazine change-over
• Adjustable for a Wide Range of PCB Magazine Sizes
• Pressure regulated on SMC pneumatic pusher
• Cast aluminum integrated lifting platform
• Selectable pitch settings
• Controlled by PLC
• 7" HMI Display
• Panasonic sensor, part No CX-422
• 3-color light tower and audible alarm
• SMEMA compatible
• CE compliance
Product Description
Application:
Adjustable Magazine Unloader is used at the end of SMT line for unloading of PCBs from the SMT production line into the magazine.
Specifications:
|
Description |
Adjustable Magazine Unloader 330mm,460mm |
|||
|
Model No |
UL33A |
UL460A |
||
|
Max PCB Size (LxW) |
460x330mm |
535x460mm |
||
|
Magazine Size (LxWxH) |
355x320x563/460x400x563mm |
535x460x570/535x530x570mm |
||
|
Fixed Rail |
Front |
|||
|
Flow Direction |
Left to right (Option right to left) |
|||
|
Conveyor Height |
920 ± 30 mm (For SMT application) |
|||
|
Component clearance |
Bottom 25 mm |
|||
|
Pitch Control |
1-4, 10mm pitch |
|||
|
Power Supply |
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz |
|||
|
Air Supply |
5~6 kg/cm² (4~6 bar) |
|||
|
Magazine Capacity |
3 magazines (1 on the lifter platform, 1 on the upper conveyor, 1 on the lower conveyor) |
|||
|
Machine Dimension (LxWxH) |
1964x846x1200mm |
2212x976x1200mm |
||
|
Net Weight |
245kgs |
330kgs |
||
|
Shipping Dimension (LxWxH) |
2144x996x1400mm |
2362x1126x1400mm |
||
| Gross Weight | 295kgs | 415kgs | ||
• Safety Cover
• Line Central Auto Width Adjustment
• Additional Magazine Capacity
• Customized Magazine Size
Other Options Available on Request
