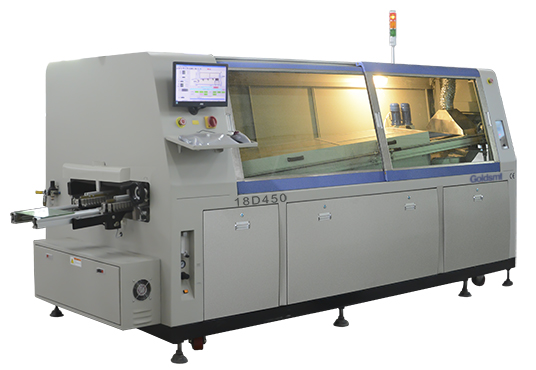

1.8 Meters Preheating Wave Soldering
Solder pot capacity of 420 kilos lead free solder
Dual Wave
Spray fluxer
Forced hot air convection 1.8 meters 3 section preheating
Self-cleaning titanium finger conveyor

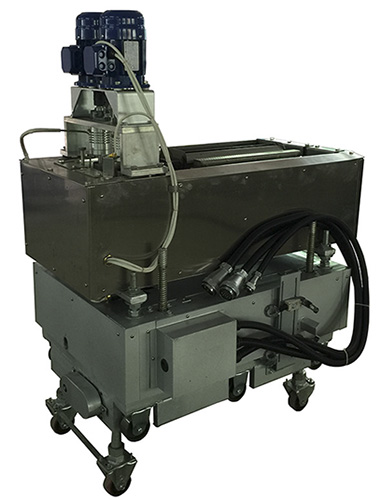

Titanium solder pot
Motorized width adjustment
Motorized solder pot in-out, up-down
Energy saving mode, save power and reduce solder dross

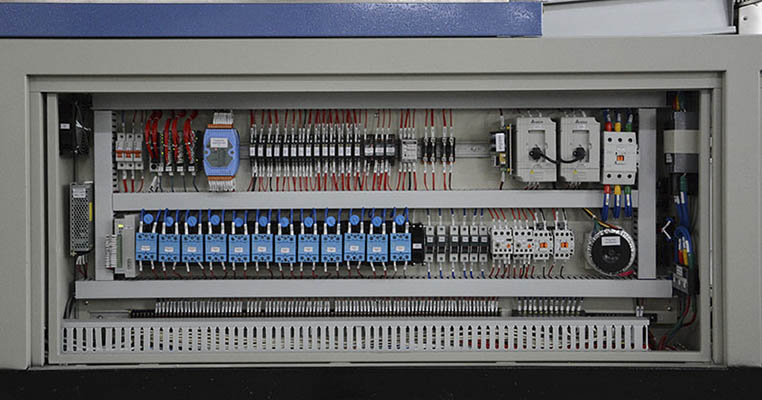

Windows 8 based user friendly operating system
PCBs up to 350mm,400mm is standard
Product Description
Application:
Wave soldering is designed for soldering for PCB of through-hole, Wave solder system with spray fluxer, available with dual or single wave, 1.8 Meters long preheater with a total machine length of 3950mm. Computer control. Titanium-alloy solder pot, capacity of approximately 420 kilos lead free solder.
Wave soldering is designed for soldering for PCB of through-hole, Wave solder system with spray fluxer, available with dual or single wave, 1.8 Meters long preheater with a total machine length of 3950mm. Computer control. Titanium-alloy solder pot, capacity of approximately 420 kilos lead free solder.
Main characteristics:
• The angle of the guide rail is adjusted by the screw rod and the gear mechanism, and the upright post is provided with an angle scale line.
• The flux adopts imported spray gun to spray. The stepper motor is controlled by the driver, the speed is stable, the atomization is even and the positioning is accurate.
• Automatic spray tracking system, spray area and time with the size of PCB automatic adjustment, automatic cleaning spray gun function.
• The exhaust system uses the original dual filter environmental protection structure, effectively reducing the pollution to the environment, easy to clean.
• The system adopts the external heating furnace, near the distance between nozzle design, adjustable angle, operation standard and energy saving modes, and can automatically collect less solder oxide, easy to clean.

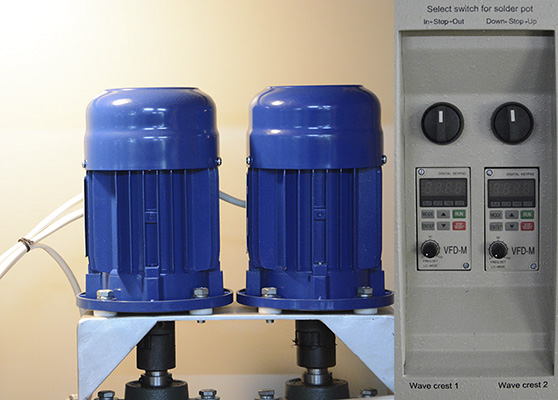

• Dual-wave system with two variable-frequency controlled motors and independent adjustment of wave crest height
• Automatic conveyor width adjustment and closed-loop control of conveyor speed
• Motor-drive and push-button control of up-down and in-out motion
• Energy-saving mode with automatic board detection and timer to turn off pump motors during periods of inactivity—saves power and reduces dross volume
Technical Specifications:
|
Model No.
|
18D350
|
18D400
|
|
Pin Conveyor Adjust Range
|
50～350 mm (width)
|
50～400 mm (width)
|
|
Solder Wave Wdith
|
360mm
|
410mm
|
|
Solder Capacity
|
300 kgs
|
420 kgs
|
|
Solder Pot Temp
|
Ambient～300°C
|
|
|
Soldering Foot Length
|
Max10mm
|
|
|
Spray Gun Movement
|
Step Motor
|
|
|
Flux Atomization Spray Gun
|
Auto timing cleanning
|
|
|
Power Supply
|
AC380V, 3 Phase/ AC 220, 3 Phase
|
|
|
Air Pressure
|
0.4 MPa (60 psi)
|
|
|
Conveyor & PC Power Supply
|
Uninterruptible Power Supply for Conveyor & PC
|
|
|
Preheating Length
|
1800 mm
|
|
|
Preheating Section
|
3 section independent control
|
|
|
Conveyor Speed
|
0.5～2.2 m/min
|
|
|
Rail Adjust Angle
|
4°～7°
|
|
|
Net Weight
|
1620 kgs
|
1650 kgs
|
|
Gross Weight
|
1820 kgs
|
1850 kgs
|
|
Machine Dimension (L× W× H)
|
3950x1370x1680 mm
|
3950x1410x1680 mm
|
|
Shipping Dimension (L× W× H)
|
4430x1640x2060 mm
|
4430x1680x2060 mm
|
Options:
Top preheating, option item number: TP008
Selective spray fluxer, option item number: SF009
Second Titanium solder pot set, option item number: ST013
Second Stainless steel solder pot set, option item number: SS014
Second spray fluxer, option item number: SF012
Smaller solder pot, 370 kilos lead free solder for 400mm wide, 300 kilos lead free solder for 350mm wide, solder pot dimension: 1024*450*203mm, option item number: SP015
Note: 450mm wide, 500mm wide wave soldering can be custom made.
