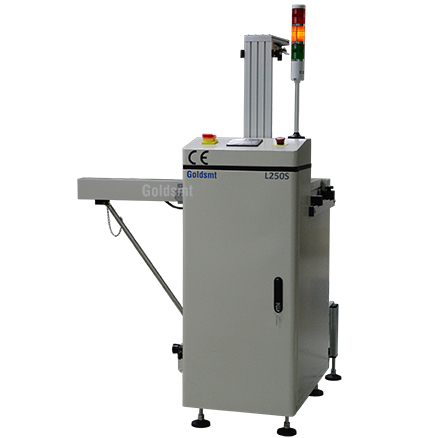

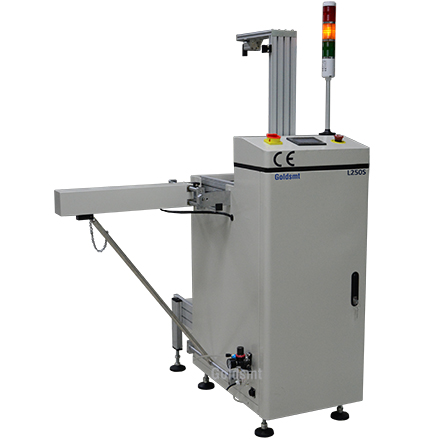

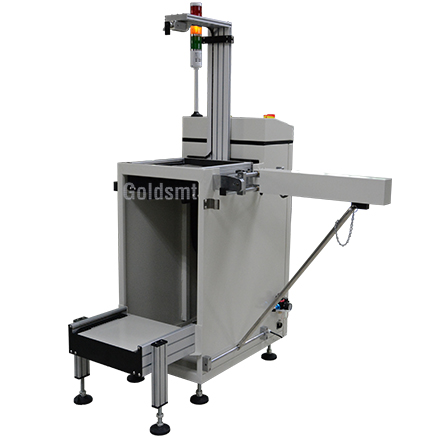

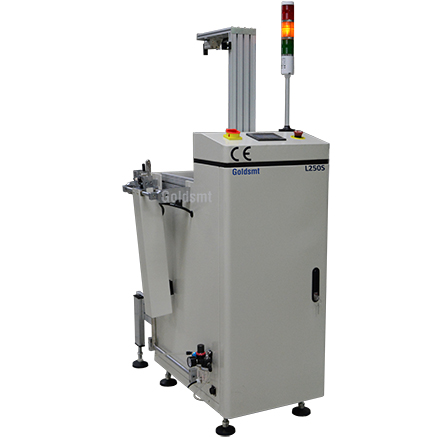

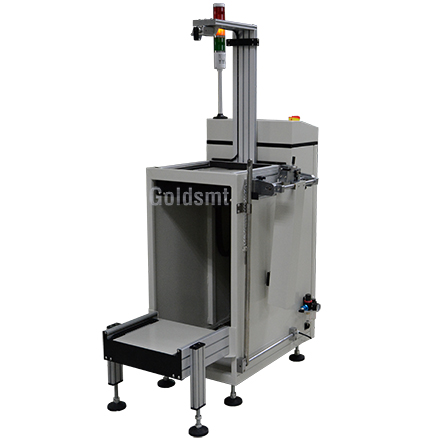

Single Magazine Line Loader
• Pusher Cylinder Adjustable to Save Space
Product Description
|
Description |
Single Magazine Line Loader 250mm,330mm,390mm,460mm |
|||
|
Model No |
L250S |
L330S |
L390S |
L460S |
|
Max PCB Size (LxW) |
350x250mm |
460x330mm |
535x390mm |
535x460mm |
|
Magazine Size (LxWxH) |
355x320x563mm |
460x400x563mm |
535x460x570mm |
535x530x570mm |
|
Fixed Rail |
Front |
|||
|
Flow Direction |
Left to right (Option right to left) |
|||
|
Conveyor Height |
920 ± 30 mm (For SMT application) |
|||
|
Component Clearance |
Bottom 25 mm |
|||
|
Pitch Control |
1-4, 10mm pitch |
|||
|
Power Supply |
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz |
|||
|
Air Supply |
5~6 kg/cm² (4~6 bar) |
|||
|
Magazine Capacity |
Only 1 magazine on the lifter platform |
|||
|
Machine Dimension (LxWxH) |
1140x1060x1200mm |
1350x1220x1200mm |
1520x1330x1200mm |
1520x1490x1200mm |
|
Net Weight |
175kgs |
195kgs |
215kgs |
235kgs |
|
Shipping Dimension (LxWxH) |
830x1210x1400mm |
940x1370x1400mm |
1010x1480x1400mm |
1010x1640x1400mm |
|
Gross Weight |
225kgs |
254kgs |
280kgs |
306kgs |
