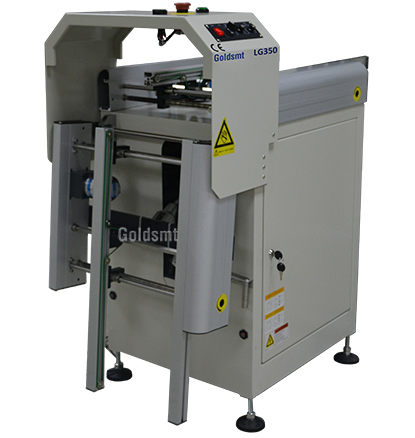

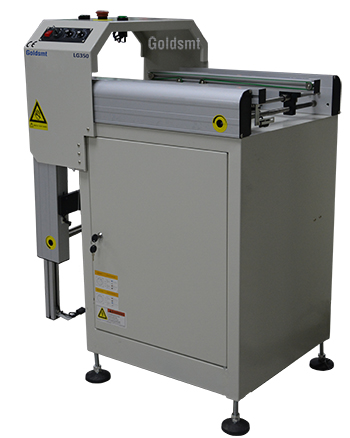

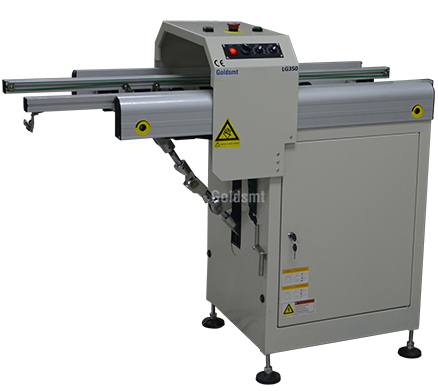

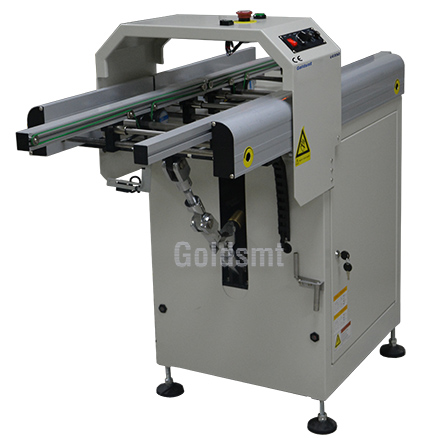

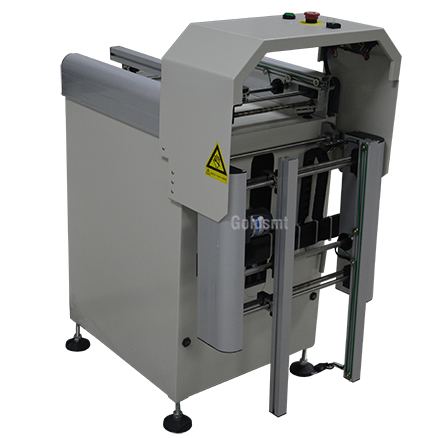

Lowering Gate Conveyor
• All Metal Solid Design Lowering Gate Conveyor
• Folding Down Design
• Push Button Control
• Safety Sensor Installed to Enhance Safety
• Stainless Steel Lead Screw Width Adjustment
• Conveyor Width Adjustment by Hand Crank
• Adjustable Speed Control
• Controlled by PLC
• Panasonic Sensor CX-422
• 4.8mm ESD Flat Belt
• SMEMA compatible
• CE compliance
Product Description
Application:
The Lowering Gate Conveyor presses the green button to manually lower the conveyor section to gain access to the rear of the PCB assembly line
The Lowering Gate Conveyor presses the green button to manually lower the conveyor section to gain access to the rear of the PCB assembly line
Specifications:
|
Description
|
Lowering Gate Conveyor 350mm, 460mm
|
|
|
Model No
|
LG350
|
LG460
|
|
Max PCB Size(LxW)
|
460x350mm
|
535x460mm
|
| Fixed Rail | Front | |
| PCB Edge Support | 3 mm | |
| Conveyor Speed | 2~11 m/min | |
| Flow Direction | Left to right (Option right to left) | |
| Conveyor Height | 920 ± 30 mm (For SMT application) | |
| Passageway | 400 mm | |
| Component clearance | Top 30mm, Bottom 20 mm | |
| Power Supply | AC220 ±10v, 50 Hz /110V ±10v, 60 Hz | |
|
Machine Dimension(LxWxH)
|
(800~1300)x540x1100mm
|
(800~1300)x640x1100mm
|
|
Net Weight
|
150kgs
|
170kgs
|
|
Shipping Dimension(LxWxH)
|
950x690x1300mm
|
950x790x1300mm
|
|
Gross Weight
|
187kgs
|
210kgs
|
Options:
• Line Central Auto Width Adjustment
• Change from ESD Flat Belt to Pin Chain Conveyor
• Customized Passageway Length
Other options available on request
