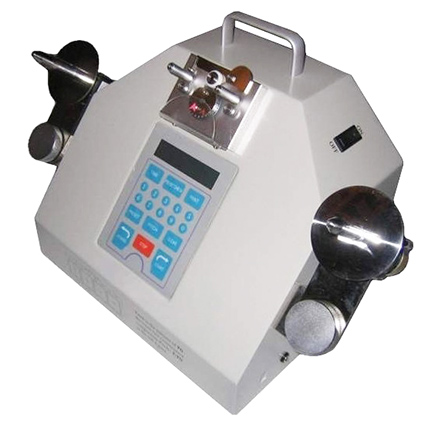

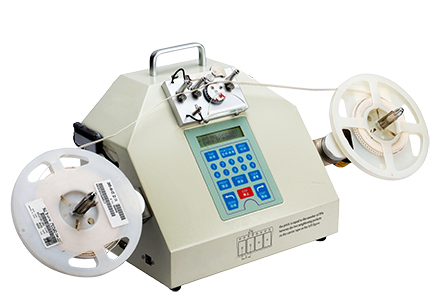

SMD Chip Counter
Motorised reel counter
Microprocessor controlled
Count forward and backward (cross check reverse count)
Pocket check feature - stops count and alarms when empty pocket encountered
Preset count quantity for 'split-reel' count outs
LCD display with tactile key panel
Designed to prevent reel dropping

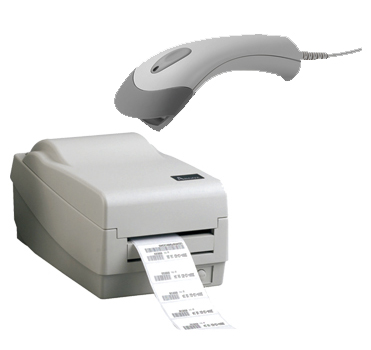

Optional Bar code scanner and printer (at additional cost)
Product Description
Application:
By using the principle of photoelectric sensing, COU2000 Series SMD Chip Counter can take the advantage of the relations between the sprocket holes and the chips and count the SMD chips accurately and quickly. It is the high-efficient auxiliary equipment for SMT material management.
Main Specifications:
|
Power Source:
|
|
|
|
Counting Direction:
|
Forward and Backward
|
|
|
Counting Range:
|
-59999 to 59999pcs
|
|
|
Tape Widths:
|
All SMD tapes
|
|
|
Counting Speed:
|
Approx. 90 secs per 5,000 7" reel (includes reverse count)
|
Order and Shipping Info:
|
Model No.
|
COU2000B
|
COU2000PC
|
|
Description
|
SMD Chip Counter Basic
|
Counter W/ Pocket Check
|
|
Machine Dimension(L*W*H)
|
410*235*240mm
|
410*235*240mm
|
|
Net Weight
|
9 kgs
|
9 kgs
|
|
Shipping Dimension(L*W*H)
|
380*330*610mm
|
380*330*610mm
|
|
Gross Weight
|
10 kgs
|
10 kgs
|
Options Available:
Label printer, Bar code copy, Empty chip detection
