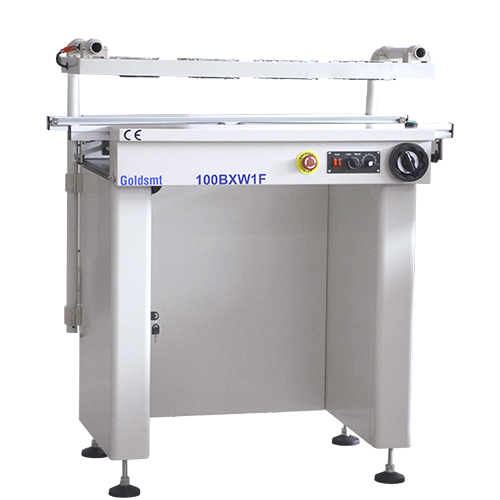

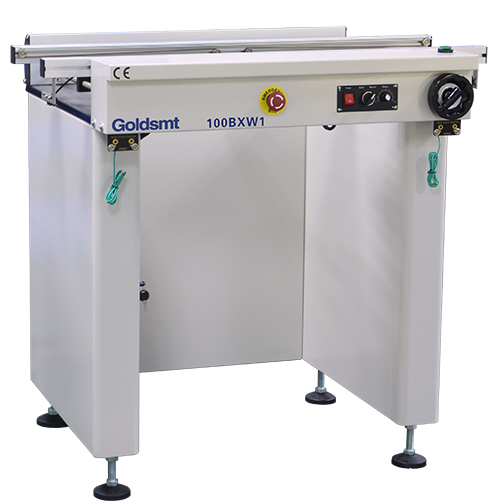

Inspection Conveyors
Inspection Conveyors are used in the PCB assembly line when frequent visual inspection of PCB’s is required, it has visual inspection, manual assembly and PCB buffering functions.
Standard Features:
• All Metal Solid Design Inspection Conveyor
• By Pass and Inspection Mode

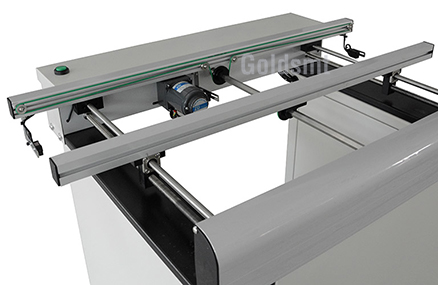

• Stainless Steel Lead Screw Width Adjustment
• Conveyor width adjustment by hand crank
• Adjustable Speed Control
• Controlled by PLC
• Panasonic Sensor CX-422
• 4.8mm ESD Flat Belt
• SMEMA compatible
• CE compliance
Product Description
Main Specifications:
|
Description
|
Inspection Conveyors 800mm,1000mm, 1200mm, 1500mm
|
|||
|
Model No
|
080BXW1
|
100BXW1
|
120BXW1
|
150BXW1
|
|
Max PCB Size (LxW)
|
380x460mm
|
480x460mm
|
580x460mm
|
730x460mm
|
|
Fixed Rail
|
Front
|
|||
|
Flow Direction
|
Left to right (Option right to left)
|
|||
|
PCB Edge Support
|
3 mm
|
|||
|
Conveyor Speed
|
2~11 m/min
|
|||
|
Conveyor Height
|
920 ± 30 mm (For SMT application)
|
|||
|
Power Supply
|
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz
|
|||
|
Conveyor Height
|
920 ± 30 mm (For SMT application)
|
|||
|
Max PCB Size (LxW)
|
380x460mm
|
480x460mm
|
580x460mm
|
730x460mm
|
|
Machine Dimension (LxWxH)
|
800x750x900mm
|
1000x750x900mm
|
1200x750x900mm
|
1500x750x900mm
|
|
Net Weight
|
69kgs
|
72kgs
|
93kgs
|
129kgs
|
|
Shipping Dimension (LxWxH)
|
950x900x1100mm
|
1150x900x1100mm
|
1350x900x1100mm
|
1650x900x1100mm
|
|
Gross Weight
|
107kgs
|
115kgs
|
140kgs
|
185kgs
|
Options:

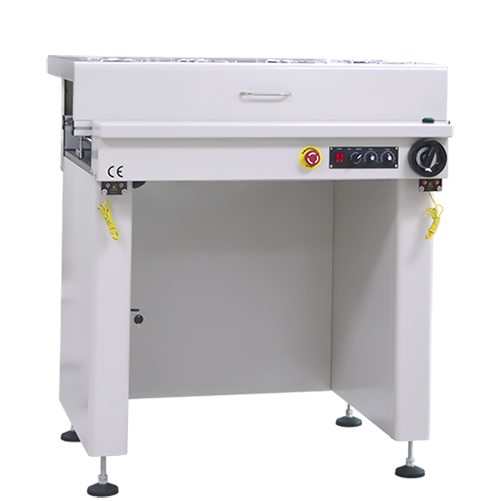

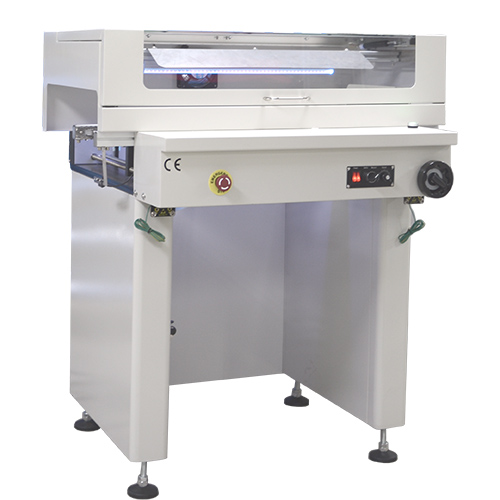

• Safety Cover
• Cooling Fan
• Line Central Auto Width Adjustment
• Change from ESD Flat Belt to Pin Chain Conveyor
• Extra Segment
