Vertical Curing Oven

Vertical automation of the epoxy cure process produces

In-line automation produces

Adopt Touch screen+ PLC + SSR control system

Solder pot made by stainless steel; high grade heat insulation filter, good airproof and insulation effect

Airproof circulated design to reduce energy consumption.

Conveyor width adjustment by hand crank

Curing time can be set (30~120 min)

50 pcs PCBs storing capacity

Selectable Pitch Settings

SMEMA compatible

CE compliance

Product Description

Application:

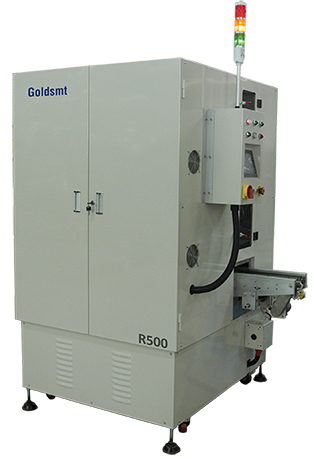

Vertical Curing Oven (R500) is designed for curing surface mount electronic components of PCB; Compared with the traditional tunnel reflow oven, Vertical Curing Oven has the characteristics of compact structure, small area, high production efficiency and low energy consumption, which greatly improves the utilization rate of the workshop.

Feature:

• Compared with the off-line curing oven, Vertical Curing Oven can enter and exit automatically on-line, realize the docking with the production line, automatically feeding and feeding, reduce the need for repeated entry and exit of common off-line curing oven, release manual hours, save labor and improve efficiency.

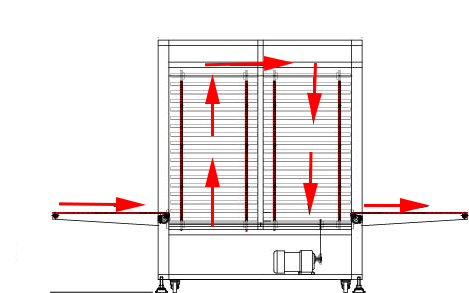

• Vertical curing oven is designed to runs vertically up and down, greatly reduces the space occupied. It saves 3-4 times more space than the traditional tunnel reflow oven (it is an excellent product to replace the traditional tunnel reflow oven, in addition, it can also be based on the product. Requirements for customization), and it breaks the traditional linear operation mode, can achieve 0.5-2 hours of curing process, but also relative to saving decoration costs.

• Improves process consistency, and therefore quality, by reducing the time and temperature variations caused by the frequent opening of batch oven doors.

• Vertical curing oven has a great improvement in energy conservation compared with common off-line curing oven. Ultra-strong power saving (vertical curing oven only need about 9KW, but can also be customized according to the different heat absorption of products), and the common curing ovens are from tens to hundreds of kilowatts. At the same time, it also saves the cost of production (compared with traditional tunnel reflow oven, the cost of electricity consumption is reduced by about 60%).

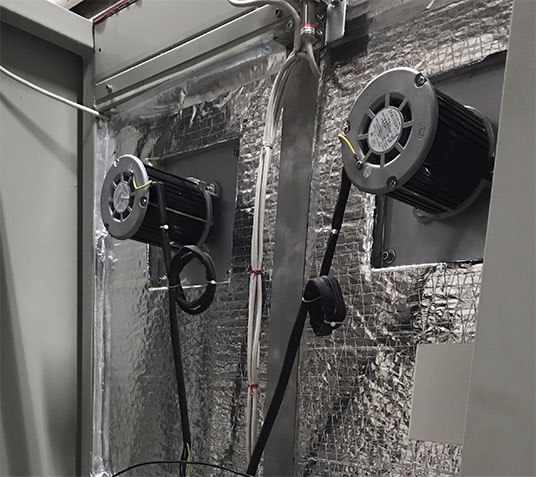

• Small circulation heating mode with double side heating and air transportation is adopted to ensure the uniform and balanced heating of the products in the furnace.

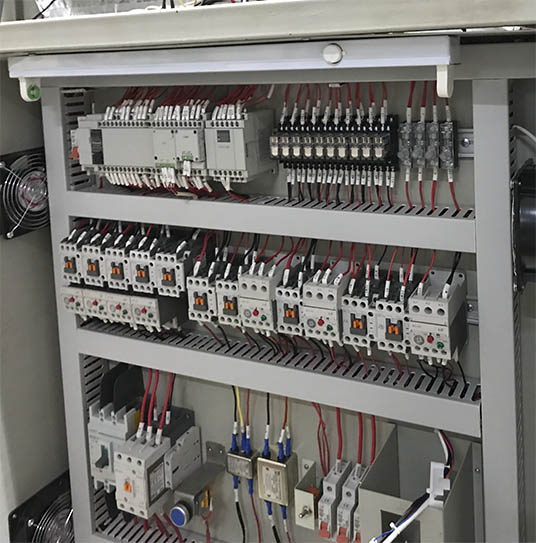

• With PLC + touch screen + SSR control system, menu-type operation interface, flexible man-machine dialogue, convenient operation.

• Software has self-diagnostic function of PID to ensure the stability of temperature control and the necessary temperature control accuracy

• With over-temperature alarm function

Technical Specifications:

Model No.	R500
Operation System	Touch screen+ PLC + SSR
Power Supply	AC380V, 3 Phase / AC 220, 3 Phase
Heating Mode	Double side, Hot air forced convection
Total Power	20 kw
Power Consumption	10~12 kw
Temp Range	Ambient~150°C
Ramp Up Time	≤25 min
Precision of Temp Control	±1°C
Delta T	±2°C
Curing Time	30mins ~ 2hours adjustable
Conveyor Speed	0.3~2 meters/min
Conveying Direction	L-R (or R-L)
PCB Width	50~250 mm
Max PCBs capacity	50 pcs (Or specify)
Process Clearance	Above pins 21mm, below pins 21mm (Or specify)
Net Weight	Custom made product
Gross Weight:	Custom made product
Machine Dimension (L× W× H)	Custom made product
Shipping Dimension (L× W× H)	Custom made product
