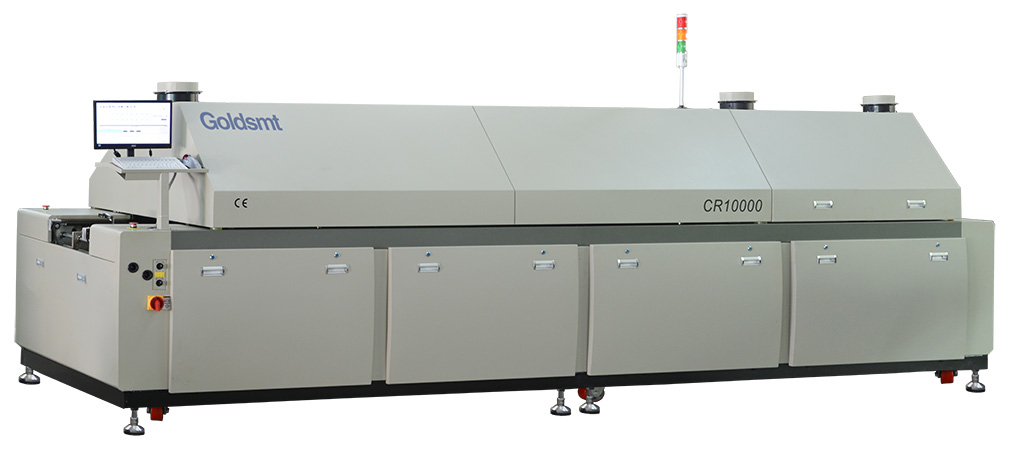

10-Zone SMT Reflow Oven
Windows 10 operating system
Upper and lower independent Temperature Control
2 Cooling Zones
450mm Pin Conveyor Over 570mm Mesh Belt
Automatic Hood Lift Mechanism
Built in High Efficiency Flux Reclaiming Device
Powerful Software for Parameter Settings

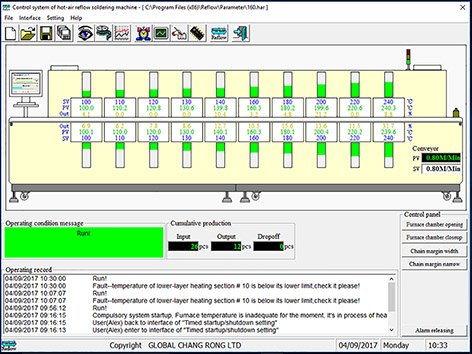

Full Screen Profile Display
3 Thermocouple Ports
Automatic Lubrication of The Chain
UPS Battery Backup
CE Compliance
Product Description
Application:
10-Zone SMT Reflow Oven (CR10000) is a forced hot air reflow oven with ten top and ten bottom heating zones, it is ideal solution for high volume production. With a maximum temperature of 350°C, CR10000 is compatible with most of lead and lead free solder paste profiles.
Feature:
• Industrial computer+PLC+SSR control.
• Windows 10 system, LCD display, has 8 programs include on/off, speed control, temperature control, profile setting, audible and light alarm, delayed turn off, etc.
• PID temperature control to ensure zone temperature stability to ±1C.
• Password and program backup to save and protect the program..
• Have audio and lighting malfunction alarm , words operating notice and data record function.
• Adopt chains and mesh both conveyor functions, it can satisfied big batch production on line.
• Chains can be automatically lubricated and fastening , This is reliable，durable and smooth .
• The ventilation ports distributed front and rear in chamber, prevents temperature scurry at each heating zone.
• Cooling zone is operated by cooling wind system; it is high cooling function effect.
• Guide track adopts three points synchronous adjustment, it cannot be distortion, adjustment method is motorize or manual adjustment; it also adopts forcedly direction device at lower part of chain, it is convenience for adjustment. It still guaranteed PCB conveying reliable after width adjustment.
• Equip with high efficiency flux filtration system, it is easy cleaning and good environment, this structure is new and high environmental protection design.
Technical Specifications:
|
Model No.
|
CR10000
|
|
Operation System
|
Win 10
|
|
Power Supply:
|
AC380V, 3 Phase,129A/ AC 220, 3 Phase, 223A
|
|
Conveyor & PC Power Supply
|
Uninterruptible Power Supply for Conveyor & PC
|
|
Heating Mode:
|
Hot air forced convection
|
|
Heating Zone Qty:
|
10 (Upper and Lower)
|
|
Heating Tunnel Length:
|
3400 mm
|
|
Power Consumption:
|
11~16 kw
|
|
Total Power:
|
68 kw
|
|
Ramp Up Time:
|
≤25 min
|
|
Precision of Temp Control:
|
±1°C
|
|
Delta T:
|
±2°C
|
|
Height of Conveyor:
|
900±20 mm
|
|
Conveying Direction:
|
L-R (or R-L)
|
|
Conveyor Speed:
|
0.4~1.8 m/min
|
|
Mesh Belt Width:
|
570 mm
|
|
Process Clearance
|
Above pins 30mm, below pins 25mm
|
|
Pin Conveyor Width:
|
50 mm-450 mm
|
|
Number of Exhaust Vents:
|
3
|
|
Exhaust Opening Size:
|
8" diameter
|
|
Exhaust Venting Volume:
|
400 CFM per port
|
|
Hood Opening Mechanism
|
Automatic Raise and Lower
|
|
Net Weight:
|
2100 kgs
|
|
Gross Weight:
|
2350 kgs
|
|
Machine Dimension (L× W× H)
|
5200×1510×1550 mm
|
|
Shipping Dimension (L× W× H)
|
5500x1850x1950 mm
|
Options:
Maximum Board Width: 610 mm (24")
Nitrogen Atmosphere Compatible
Infra-red (IR)
Exterior Chiller
Central Support
