8-Zone SMT Reflow Oven

Windows 10 operating system

Upper and lower independent Temperature Control

450mm pin conveyor over 570mm mesh belt

Built in High Efficiency Flux Reclaiming Device

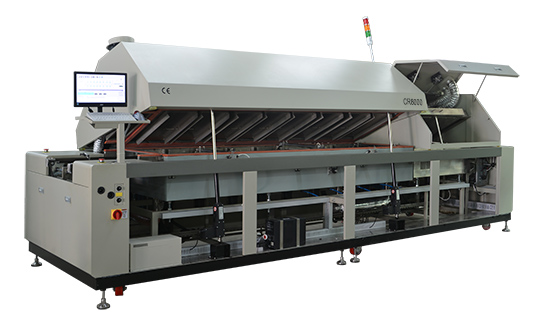

Automatic hood lift mechanism
Powerful software for parameter settings

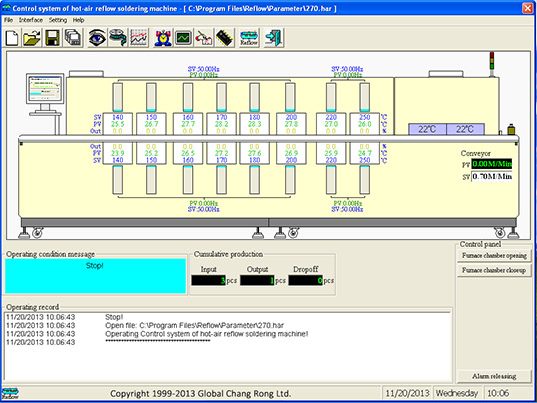

Full screen profile display,

3 Thermocouple Ports

Automatic lubrication of the chain

UPS battery backup

CE compliance

Product Description

Application:

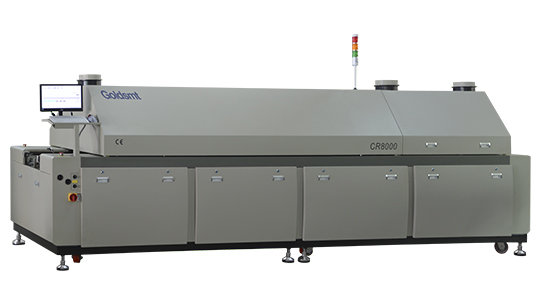

8-Zone SMT Reflow Oven (CR8000) is ideal solution for high volume production. It has a combination of 8 independently controlled full convection heating zones (Upper 8, Lower 8), 2 cooling zones, which is an airproof circulated design, so it can achieve the biggest saving energy purpose.

Feature:

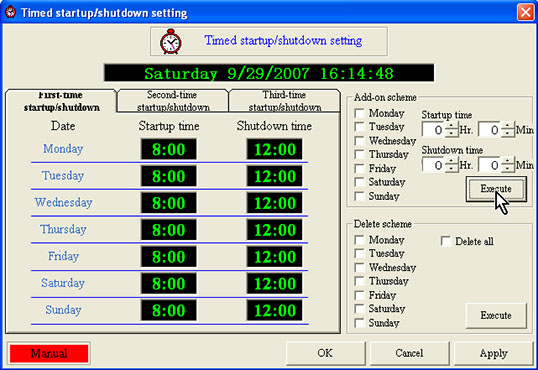

• Windows 10 system, LCD display, has 8 programs include on/off, speed control, temperature control, profile setting, audible and light alarm, delayed turn off, etc.

• Industrial computer+PLC+SSR control.

• PID temperature control to ensure zone temperature stability to ±1C.

• Could set, save and load the oven temperature and conveyor speed parameters from the software.

• Have PCB soldering temperature curve testing function and also have printing function.

• Have audio and lighting malfunction alarm , words operating notice and data record function.

• Adopt chains and mesh both conveyor functions, it can satisfied big batch production on line.

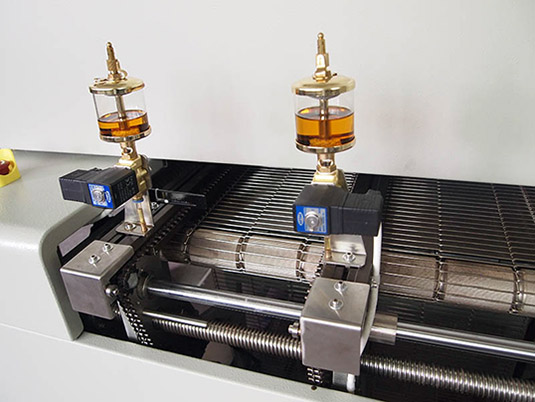

• Chains can be automatically lubricated and fastening , This is reliable，durable and smooth .

• The ventilation ports distributed front and rear in chamber, prevents temperature scurry at each heating zone.

• Cooling zone is operated by cooling wind system; it is high cooling function effect.

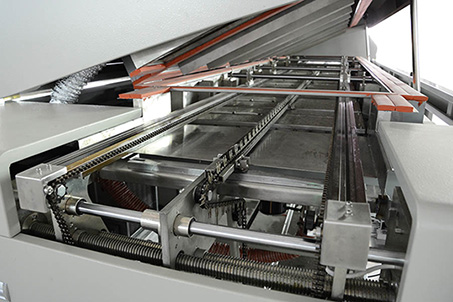

• Use 3 points simultaneous width adjustment for the rail. No distortion.

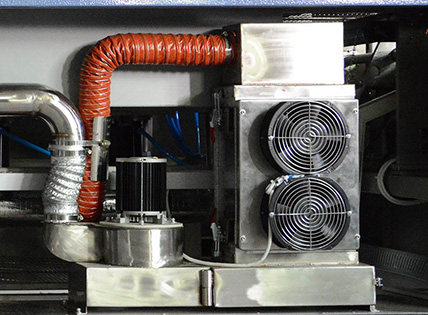

• Equip with high efficiency flux filtration system, it is easy cleaning and good environment, this structure is new and high environmental protection design.

• Equip UPS power supply automatic delay shut down system, it can be guaranteed PCB boarding out safety when it was stop electricity.

Technical Specifications:

Model No.	CR8000
Operation System	Win 10
Power Supply:	AC380V, 3 Phase,110A/ AC 220V, 3 Phase, 190A
Conveyor & PC Power Supply	Uninterruptible Power Supply for Conveyor & PC
Heating Mode:	Hot air forced convection
Heating Zone Qty:	8 (Upper and Lower)
Heating Tunnel Length:	2700 mm
Power Consumption:	10~14 kw
Total Power:	58 kw
Ramp Up Time:	≤25 min
Precision of Temp Control:	±1°C
Delta T:	±2°C
Height of Conveyor:	900±20 mm
Conveying Direction:	L-R (or R-L)
Conveyor Speed:	0.4~1.8 m/min
Mesh Belt Width:	570 mm
Process Clearance	Above pins 30mm, below pins 25mm
Pin Conveyor Width:	50 mm-450 mm
Number of Exhaust Vents:	3
Exhaust Opening Size:	8" diameter
Exhaust Venting Volume:	400 CFM per port
Hood Opening Mechanism	Automatic Raise and Lower
Net Weight:	2000 kgs
Gross Weight:	2230 kgs
Machine Dimension (L× W× H)	4800×1510×1550 mm
Shipping Dimension (L× W× H)	5200x1850x1950 mm

Options:

Maximum Board Width: 610 mm (24")

Nitrogen Atmosphere Compatible

Infra-red (IR)

Exterior Chiller

Central Support
