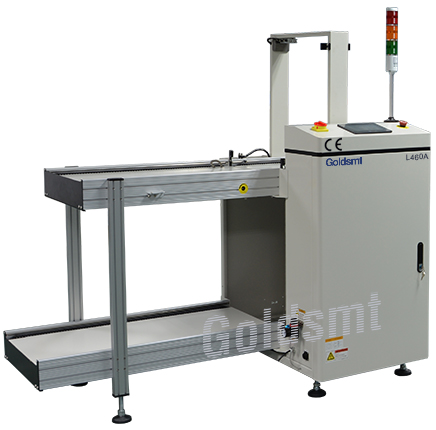

Adjustable Magazine Loader
Automatic full magazine load and empty magazine offload
Adjustable for a Wide Range of PCB Magazine Sizes
Controlled by PLC
Pressure regulated on SMC pneumatic pusher
Cast aluminum integrated lifting platform
Panasonic sensor, part No CX-422
9" LCD touch screen control
3-color light tower and audible alarm
Selectable pitch settings
SMEMA compatible
CE compliance
Product Description
Application:
Adjustable Magazine Loader loads your SMT production line automatically by pushing PCB’s out of a magazine onto the conveyor of the downstream machine.
Main Specifications:
|
Conveyor Height:
|
950 ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Optional Right to left)
|
|
Fixed Rail:
|
Front (Optional rear rail fixed)
|
|
Machine Interface:
|
SMEMA
|
|
Component clearance:
|
Bottom 25 mm (Or specify)
|
|
PCB Loading Time:
|
± 7 seconds
|
|
Magazine Change-over Time:
|
± 25 seconds
|
|
Pitch Control:
|
1-4, 10mm pitch (Or specify)
|
|
PCB Magazine Size:
|
Adjustable for 250, 330, 390 and 460mm (Or specify)
|
|
Magazine Capacity:
|
1 magazine on the lifter platform,
1 empty magazine on the upper output magazine conveyor,
2 full magazines on the lower input magazine conveyor. Or specify
|
|
Max total magazine weight:
|
50 kgs each (Or specify)
|
|
Power Supply:
|
AC220 ±10v, 50Hz /110V ±10v, 60Hz
|
|
Air Supply:
|
5~6 kg/cm² (4~6 bar)
|
Order and Shipping Info:
|
Description
|
Adjustable Magazine Loader 330mm,460mm
|
|
|
Model No
|
L330A
|
L460A
|
|
Max PCB Size(LxW)
|
460x330mm
|
535x460mm
|
|
Magazine Size (LxWxH)
|
355x320x563/460x400x563mm
|
535x460x570/535x530x570mm
|
|
Machine Dimension(LxWxH)
|
1350x1270x1200mm
|
1520x1540x1200mm
|
|
Net Weight
|
210kgs
|
245kgs
|
|
Shipping Dimension(LxWxH)
|
1400x1420x1400mm
|
1670x1640x1400mm
|
|
Gross Weight
|
255kgs
|
315kgs
|
Options:
Safety Cover
Additional Magazine Capacity
Other options available on request
