5-Zone SMT Reflow Oven

Upper and lower independent temp control

450mm pin conveyor over 570mm mesh belt

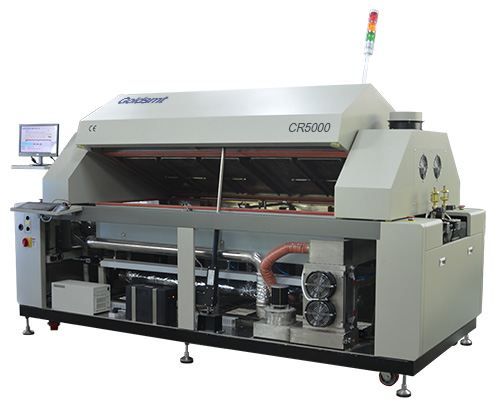

Automatic hood lift mechanism

Compact heating zone length
Powerful software for parameter settings

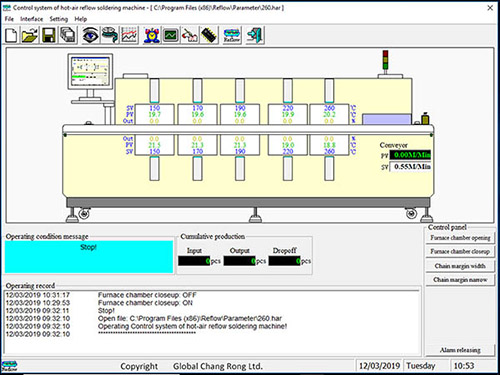

Full screen profile display,

3 thermocouple

Automatic lubrication of the chain

UPS battery backup

CE compliance

Product Description

Application:

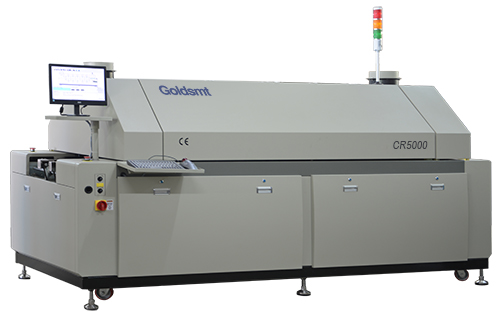

5 Zone SMT Reflow Oven (CR5000) is used for reflow soldering of surface mount electronic to PCB, it is a force hot air and full-convection reflow oven, it has a combination of 5 independently heating zones (Upper 5, Lower 5). 5 Zone SMT Reflow Oven is ideal solution for medium volume production.

Feature:

• Guide track adopts three points synchronous adjustment, it cannot be distortion, adjustment method is motorize or manual adjustment; it also adopts forcedly direction device at lower part of chain, it is convenience for adjustment. It still guaranteed PCB conveying reliable after width adjustment.

• Equip UPS power supply automatic delay shut down system, it can be guaranteed PCB boarding out safety when it was stop electricity.

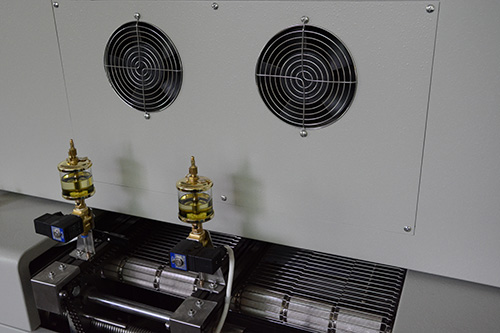

• Chains can be automatically lubricated and fastening , This is reliable，durable and smooth .

• The ventilation ports distributed front and rear in chamber, prevents temperature scurry at each heating zone.

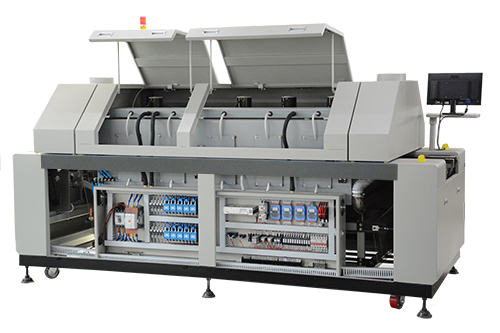

• Adopt industry computer +PLC+SSR control system.

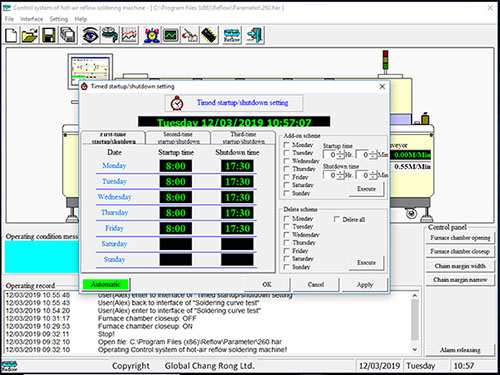

• Windows 10 operation system display English, LCD display; including switch on/off procedure; speed control, temperature curve profiling, audio and lighting alarm and defer switch off functions.

• Each heating zone adopts independence PID control, have high efficiency, fast heat compensation ability.

• Software can save and transfer conveyor speed, and temperature parameter in solder pot.

• Have PCB soldering temperature curve testing function and also have printing function.

• Have audio and lighting malfunction alarm, words operating notice and data record function.

• Adopt chains and mesh both conveyor functions, it can satisfied big batch production on line.

Technical Specifications:

Model No.	CR5000
Operation System	Win 10
Power Supply:	AC380V, 3 Phase,72A/ AC 220, 3 Phase, 125A
Conveyor & PC Power Supply	Uninterruptible Power Supply for Conveyor & PC
Heating Mode:	Hot air forced convection
Heating Zone Qty	5 (Upper and Lower)
Heating Tunnel Length	1910 mm
Power Consumption	6~6 kw
Total Power	38 kw
Ramp Up Time	≤25 min
Precision of Temp Control	±1°C
Delta T	±2°C
Height of Conveyor	900±20 mm
Conveying Direction	L-R (or R-L)
Conveyor Speed	0.4~1.8 m/min
Mesh Belt Width	570 mm
Process Clearance	Above pins 30mm, below pins 25mm
Pin Conveyor Width	50 mm-450 mm
Number of Exhaust Vents	2
Exhaust Opening Size	8" diameter
Exhaust Venting Volume	400 CFM per port
Hood Opening Mechanism	Automatic Raise and Lower
Net Weight:	1220 kgs
Gross Weight:	1600 kgs
Machine Dimension (L× W× H)	3040×1380×1445 mm
Shipping Dimension (L× W× H)	3330x1660x1880 mm

Options:

Nitrogen Atmosphere Compatible

Infra-red (IR)

Central Support
