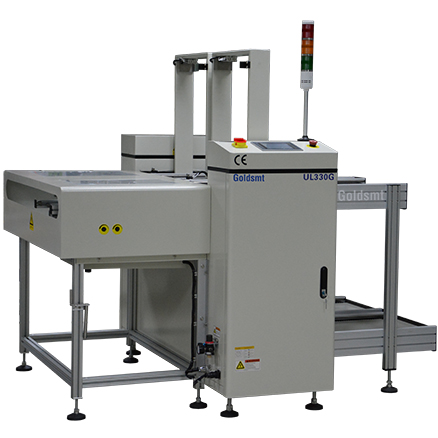

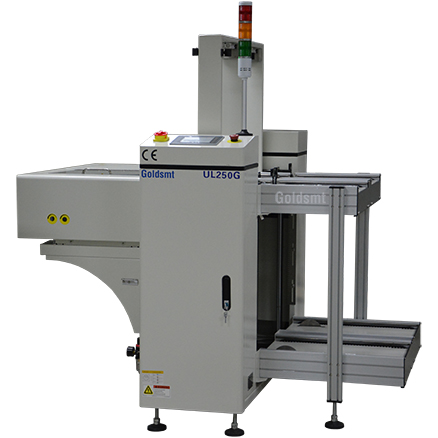

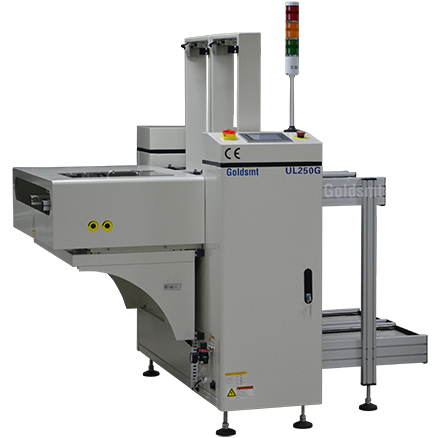

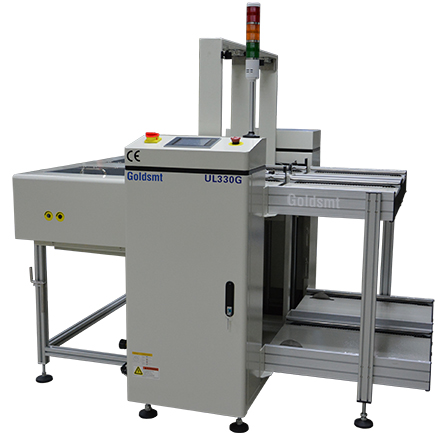

Automatic NG/OK Unloader
• Good and defective PCBs can be stored separated
automatically with magazine rack
• Connecting AOI or ICT allow distinguish good PCBs
from NG PCBs by signal
• Automatic magazine change-over
• Pressure regulated on SMC pneumatic pusher
• Cast aluminum integrated lifting platform
• Selectable Pitch Settings
• Controlled by PLC
• 7" HMI Display
• Panasonic Sensor CX-422
• 4.8mm ESD Flat Belt
• 3-Color Light Tower and Audible Alarm
• SMEMA Compatible
• CE compliance
Product Description
Application:
Automatic NG/OK unloader is used after AOI, the OK and NG PCB after being tested by AOI can be separated and sent to the PCB racks
Specifications:
|
Description
|
Automatic NG/OK Unloader 250mm,330mm,390mm,460mm
|
|||
|
Model No
|
UL250G
|
UL330G
|
UL390G
|
UL460G
|
| Max PCB Size (LxW) | 350x250mm | 460x330mm | 535x390mm | 535x460mm |
| Magazine Size (LxWxH) | 355x320x563mm | 460x400x563mm | 535x460x570mm | 535x530x570mm |
|
Flow Direction
|
Left to right (Option right to left)
|
|||
| Conveyor Height | 920 ± 30 mm (For SMT application) | |||
|
Fixed Rail
|
Front
|
|||
|
Component clearance
|
Bottom 25 mm
|
|||
|
Pitch Control
|
1-4, 10mm pitch
|
|||
|
Magazine Capacity
|
6 magazines (2 on the lifter platform, 2 on the upper conveyor, 2 on the lower conveyor)
|
|||
| Power Supply | AC220 ±10v, 50 Hz /110V ±10v, 60 Hz | |||
| Air Supply | 5~6 kg/cm² (4~6 bar) | |||
|
Machine Dimension (LxWxH)
|
1510x1460x1200mm
|
1910x1630x1200mm
|
2160x1760x1200mm
|
2160x1900x1200mm
|
|
Net Weight
|
320kgs
|
350kgs
|
380kgs
|
410kgs
|
|
Shipping Dimension (LxWxH)
|
1660x1610x1400mm
|
2060x1780x1400mm
|
2310x1910x1400mm
|
2310x2050x1400mm
|
|
Gross Weight
|
366kgs
|
405kgs
|
433kgs
|
456kgs
|
Options:
• Safety Cover
• Line Central Auto Width Adjustment
• Additional Magazine Capacity
• Customized Magazine Size
Other Options Available on Request
