Baking 40 degrees ≤5%RH Dry Cabinets T40

Power: AC220V/110V, 50/60 HZ, 1 phase

Power Consumption: Ave. 200~600Wh; Max: 450~1200W

Grounding Wire: 1MΩ(940mm long)

ESD Paint: 10³~10⁹Ω(surface resistance)

Structure: 1mm thick carbon steel with antistatic paint

Warranty: 2 years parts

Product Description

Applications:

According to J-STD-033B, Moisture sensitivity SMD packages which are exposed to the air and exceed the floor life should be baked at 40°C and stored in <5%RH ambient to reset their floor life (see J-STD-033B table 4-1, 4-3). Our T40 is especially designed to fit for this requirement.

For example: If MSD parts Level 4,5 and 5a are exposed to the air for less than 8 hours, they should be stored in a dry cabinet to reset their floor life. However, if their exposure time is longer than 8 hours, the SMD packages must store at 40°C baking machine to reset the floor life to zero.

Features:

1. Plug and play—no installation required

2. Digital read-out displays temperature and humidity level

3. Desiccant automatically regenerates, desiccant level to be continuously maintained

4. Shelves capacity 45 kilos each

5. 2 anti-static wheels with brakes, 2 standard wheels

6. Anti-static paint and glass

7. Compression handles and airtight magnetic sealers

8. LED control panel

Order and Shipping Info:

Description	Baking 40 degrees ≤5%RH Dry Cabinets T40

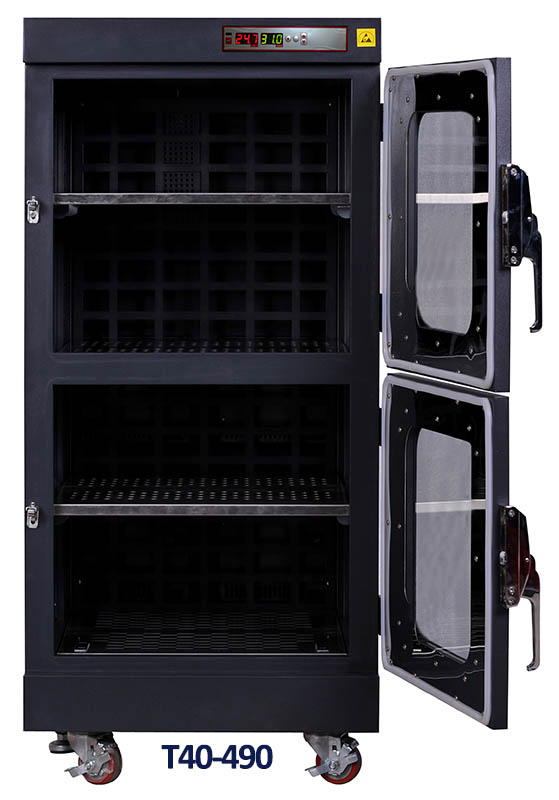

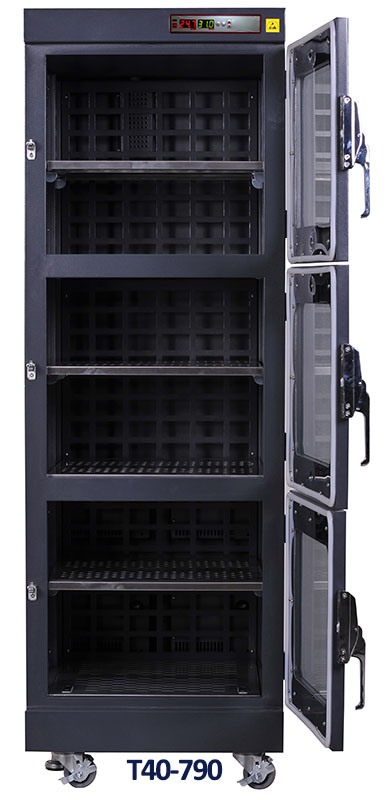

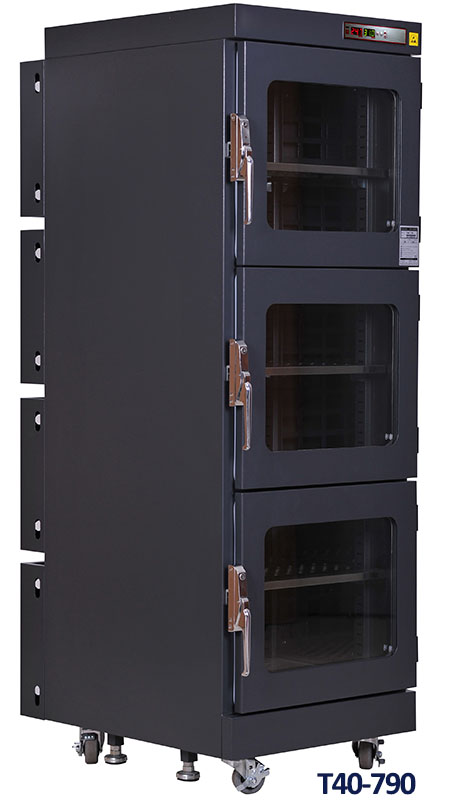

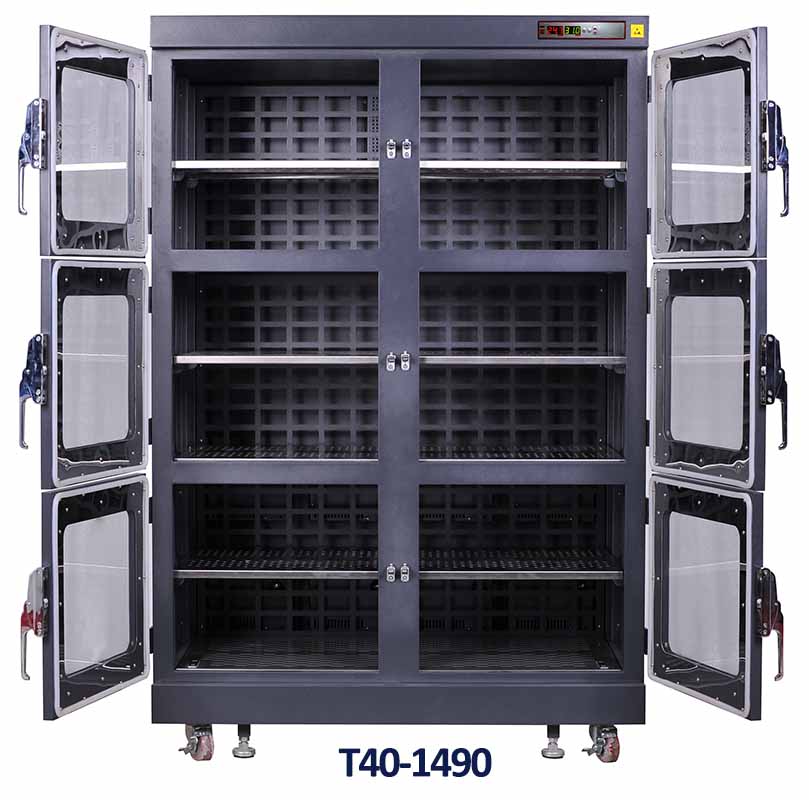

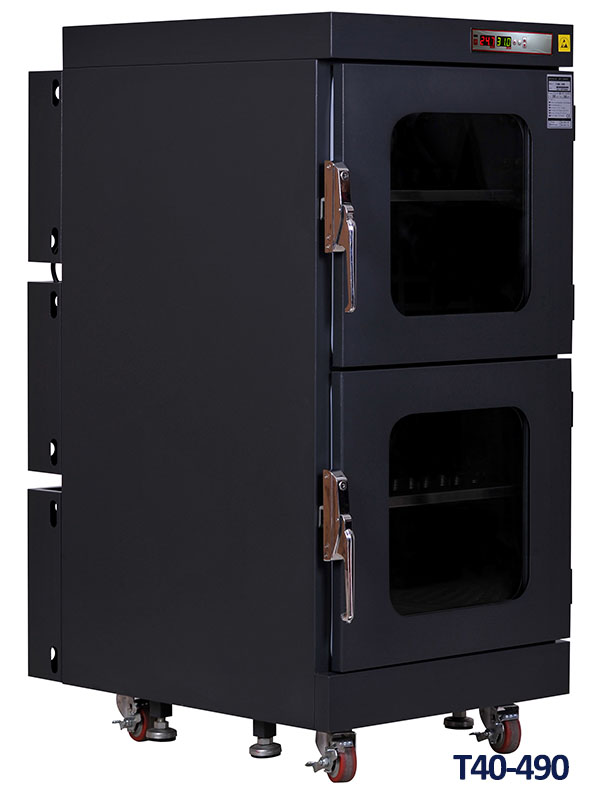

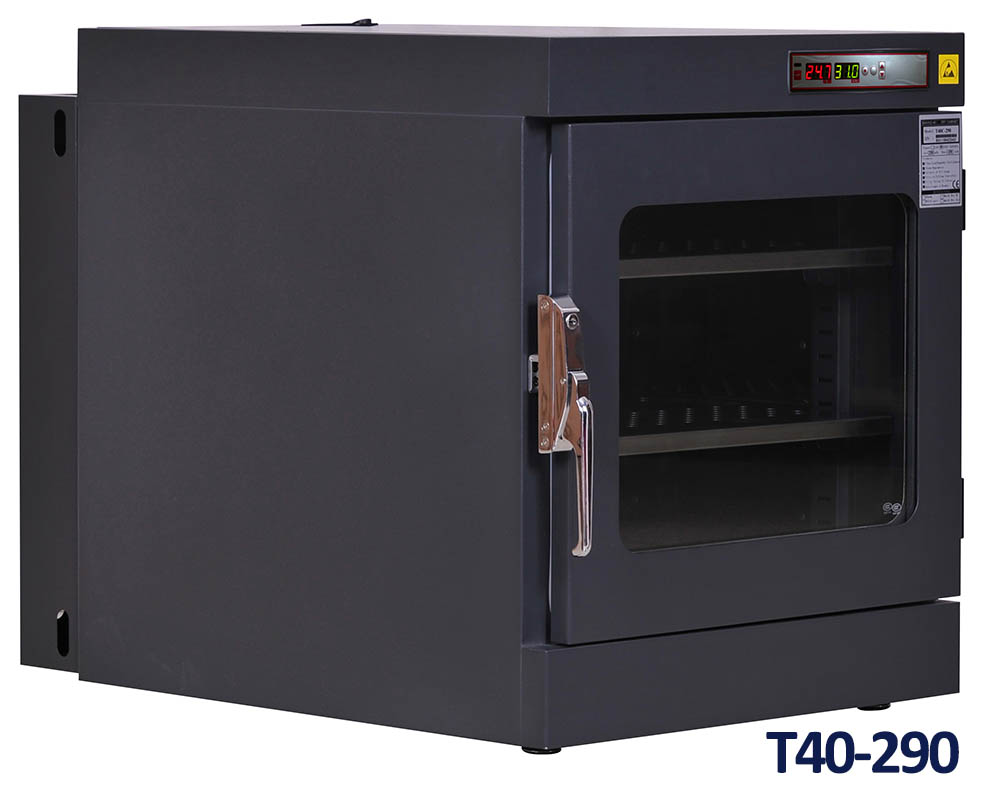

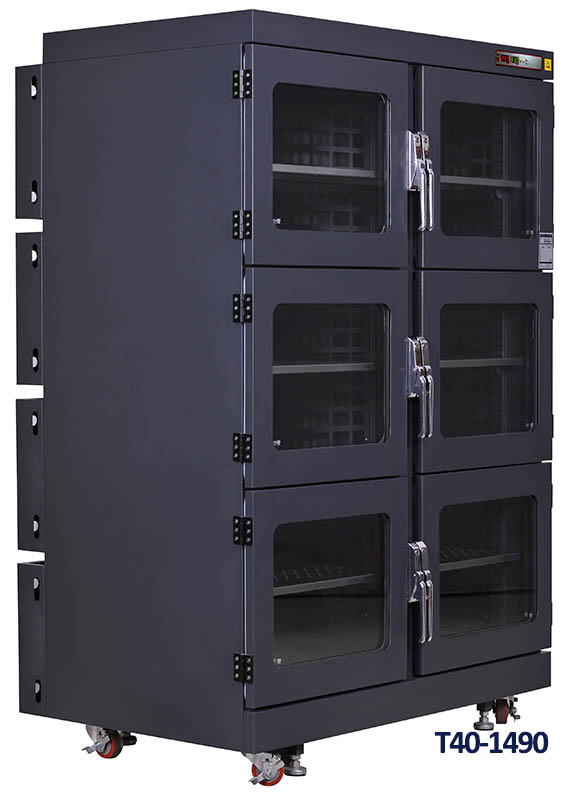

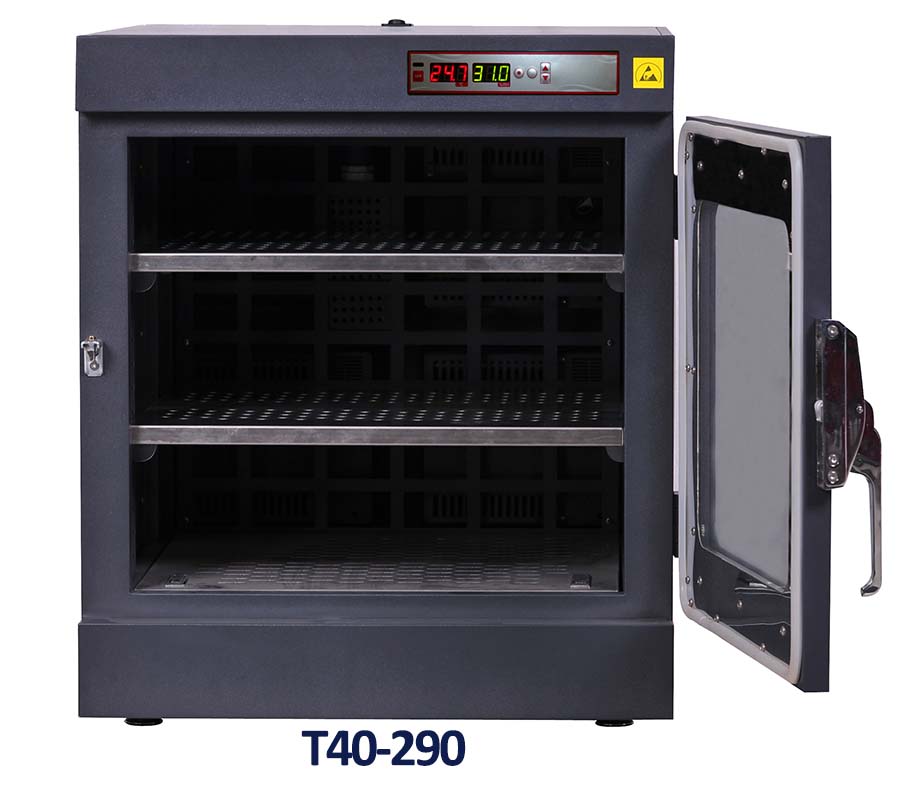

Model No	T40-1490	T40-790	T40-490	T40-290
Machine Dimension(LWH)	12008401820mm	6008401820mm	6008401308mm	600840709mm
Net Weight	277 kgs	185 kgs	136 kgs	80 kgs
Shipping Dimension(LWH)	13509801995mm	7309801995mm	7309801482mm	730980969mm
Gross Weight	340 kgs	213.5 kgs	162.5 kgs	104 kgs
